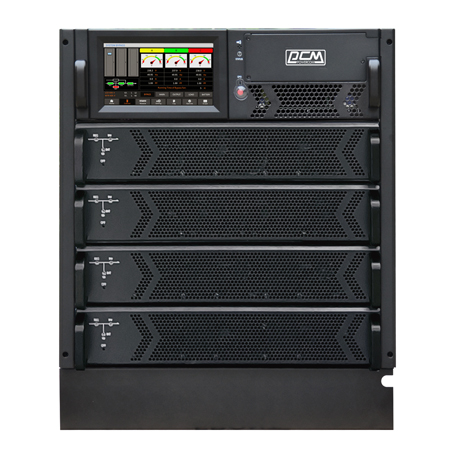

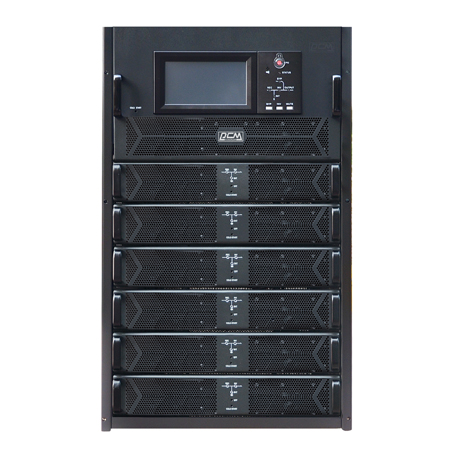

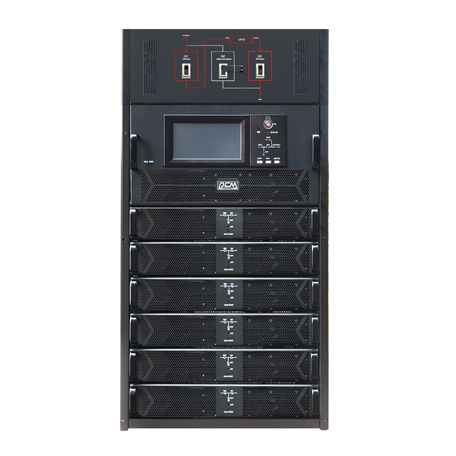

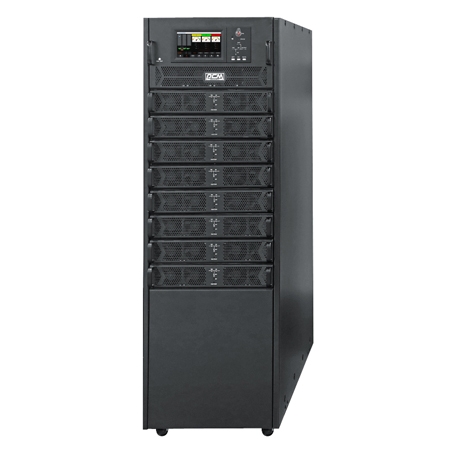

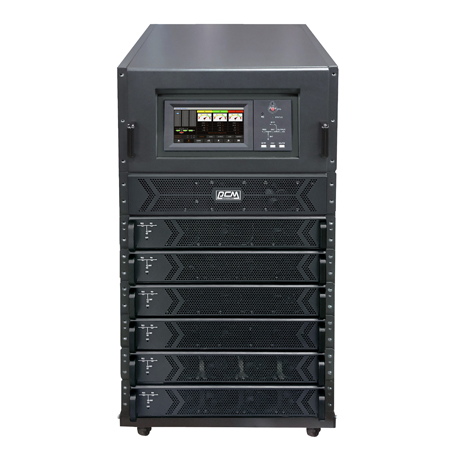

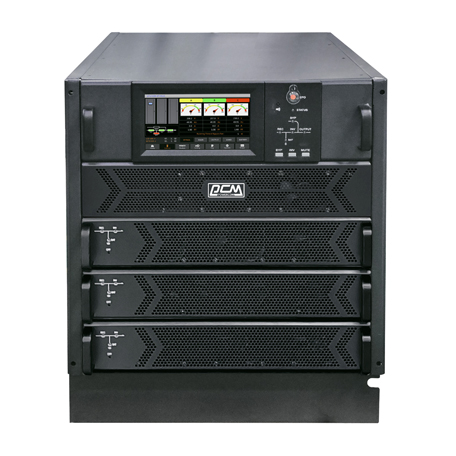

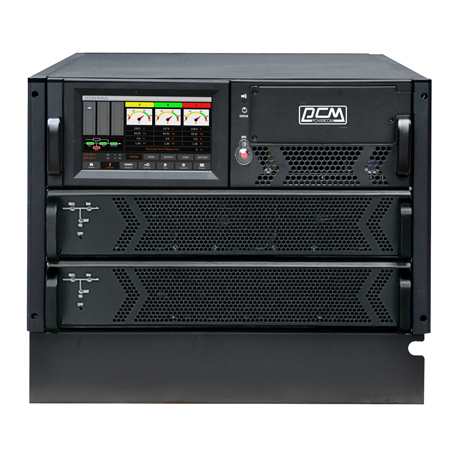

VGD II-M


  • Modular design expands capacity flexibly

  • Easy installation and maintenance

  • With compact size design and high power density

  • Friendly interface to read and control

  • Monitor the real-time status and components

  • VGDII Modular-10K Module:20~60K

  • VGDII Modular-15K Module:30~90K

  • VGDII Modular-25K Module:150~200K

  • VGDII Modular-30K Module:180~600K

  • VGDII Modular-40K Module:80~400K

  • VGDII Modular-50K Module:100~500K

    •       　
     UPS
    Model
    VGDII-020M/10
    VGDII-030M/10
    VGDII-040M/10
    VGDII-060M/10
    VGDII-030M/15
    VGDII-045M/15
    VGDII-090M/15
    Phase
    3 phase in / 3 phase out
     SYSTEM CAPACITY
    Max. Capacity (VA)
    20 KVA
    30 KVA
    40 KVA
    60 KVA
    30 KVA
    45 KVA
    90 KVA
    Max. Capacity (Watts)
    20 KW
    30 KW
    40 KW
    60 KW
    30 KW
    45 KW
    90 KW
    Power Module Capacity
    10KVA/10KW
    15KVA/15KW
    Max. Power Module No.
    2
    3
    4
    6
    2
    3
    6
     MAIN INPUT
    Grid System
    3 Phases + Neutral + Ground
    Voltage
    380 / 400 / 415 VAC (Line-Line)
    Voltage Range
    Full load：304~478Vac (line-line)
    Others：228V~304Vac (line-line)
    load decreases linearly according to the min phase voltage
    Frequency
    50 / 60Hz
    Frequency Range
    40Hz to 70Hz
    Power Factor
    >0.99
    Current THDi
    <4% (full Linear Load)
    Dual Input
    Standard
     OUTPUT
    Inverter Voltage
    380 / 400 / 415 VAC (Line-Line)
    Inverter Frequency
    50 / 60Hz
    Output Power Factor
    1
    Voltage Regulation
    1% for balance load; 1.5% for unbalance load
    Frequency Precision
    0.10%
    Crest factor
    3:1
    Output THDu
    <1.0% from 0% to 100% liner load
    <5.5% full non-linear load according to IEC/EN62040-3
    Inverter Overload
    <102%, long time <110%, 60 min; 110%~125%, 10 min; 125% ~ 150%, 1 min; >150%, 200ms
     BATTERY & CHARGER
    Battery Voltage
    ±240VDC
    Charger Voltage precision
    1%
    Charger Power
    MAX = 20% *Output Power
    Cold Start Function
    Standard
     BYPASS INPUT
    Voltage
    380 / 400 / 415VAC (Line-Line)
    Voltage Range
    Settable, -40%∼+25%
    Frequency
    50 / 60Hz
    Frequency Range
    Settable Range: ± 1Hz, ± 3Hz, ± 5Hz
    Bypass Overload
    125% Long Time Operation
    125% to 130% for 10min
    130% to 150% for 1min
    >150% for 300ms
    110% Long Time Operation
    110% to 130% for 5min
    130% to 150% for 1min
    >150% for 300ms
     EFFICIENCY
    Normal Operation
    95%
    ECO Mode
    99%
    Battery Operation
    94.5%
     ENVIRONMENTAL
    Operation
    0 - 45°C
    Storage
    -40 - 70°C
    Relative Humidity
    0 - 95% (Non condensing)
    Noise
    56dB @ 50% load(1m from surface)
    Altitude
    Normal Load: <1000m; Power derated 1% per 100m From 1000 to 2000m
     PHYSICAL
    Dimension (W x D x H) (mm)
    485x697x398
    485x751x575
    485x697x575
    485x751x1033
    485x697x398
    485x751x575
    485x751x1033
    Cabinet Weight (kg)
    42
    57
    51
    85
    42
    57
    85
    Power Module Dimension
    436 x 590 x 85
    436 x 590 x 85
    Power Module Weight
    15.3
    15.5
     SYSTEM
    Display
    7" LED + LCD Touch Screen
    Interface
    Standard : RS232, RS485, Dry Contact
    Optional : SNMP
    Other Function
    Optional : Parallel Kit, Lightning protection components
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     UPS
    Model
    VGDII-150M/25
    VGDII-150M/25
    (with PDU)
    VGDII-200M/25
    VGDII-180M/30
    VGDII-300M/30
    VGDII-600M/30
    Phase
    3 phase in / 3 phase out
     SYSTEM CAPACITY
    Max. Capacity (VA)
    150 KVA
    200 KVA
    180 KVA
    300 KVA
    60 KVA
    Max. Capacity (W)
    150 KW
    200 KW
    180 KW
    300 KW
    600 KW
    Power Module Capacity
    25KVA/25KW
    30KVA/30KW
    Max. Power Module No.
    6
    8
    6
    10
    20
     MAIN INPUT
    Grid System
    3 Phases + Neutral + Ground
    Voltage
    380 / 400 / 415 VAC (Line-Line)
    Voltage Range
    Full load：304~478Vac (line-line)
    Others：228V~304Vac (line-line)
    load decreases linearly according to the min phase voltage
    Frequency
    50 / 60Hz
    Frequency Range
    40Hz to 70Hz
    Power Factor
    >0.99
    Current THDi
    <3% (full Linear Load)
    Dual Input
    Optional
    Standard
    Optional
     OUTPUT
    Inverter Voltage
    380 / 400 / 415 VAC (Line-Line)
    Inverter Frequency
    50 / 60Hz
    Power Factor
    1
    Voltage Regulation
    ±1(0~100% linear load)
    1% for balance load; 1.5% for unbalance load
    Frequency Precision
    0.1%
    Crest factor
    3:1
    Output THDu
    <1.0% from 0% to 100% liner load
    <6% full non-linear load according to IEC/EN62040-3
    Inverter Overload
    <110%, 60 min; 110%~125%, 10 min; 125% ~ 150%, 1 min; >150%, 200ms
     BATTERY & CHARGER
    Battery Voltage
    ±240VDC
    Charger Voltage precision
    1%
    Charger Power
    MAX = 20% *Output Power
    Cold Start Function
    Standard
     BYPASS INPUT
    Voltage
    380 / 400 / 415VAC (Line-Line)
    Voltage Range
    Settable, -40%∼+25%
    Frequency
    50 / 60Hz
    Frequency Range
    Settable Range: ± 1Hz, ± 3Hz, ± 5Hz
    Bypass Overload
    110% for 60min
    110% to 125% for 10min
    125% to 150% for 1min
    >150% for 200ms
    110% Long Time Operation
    110% to 125% for 5min
    125% to 150% for 1min
    >150% for 200ms
     EFFICIENCY
    Normal Operation
    96%
    >95%
    ECO Mode
    98%
    >99%
    Battery Operation
    95.5%
    >95%
     ENVIRONMENTAL
    Operation
    0 - 40°C
    Storage
    -40 - 70°C
    Relative Humidity
    0 - 95% (Non condensing)
    Noise
    65dB @ 100% load / 62dB @ 45% load
    72dB @ 100% load, 68dB @ 45% load
    Altitude
    Normal Load: <1000m; Power derated 1% per 100m From 1000 to 2000m
     PHYSICAL
    Dimension(mm)
    482x943x931
    482x943x1058
    482x943x1550
    600x1100x1600
    600x1100x2000
    2000x1050x2000
    Cabinet Weight (kg)
    140
    180
    160
    165
    200
    660
    Power Module Dimension
    436 x 677 x 85
    460 x 790 x 134
    Power Module Weight
    18
    34
     SYSTEM
    Display
    7" LED + LCD Touch Screen
    10.4" LED + LCD Touch Screen+Keyboard
    Interface
    Standard :RS232, RS485, Dry Contact
    Standard :RS232, USB, RS485, Dry Contact
    Optional : SNMP
    Optional : SNMP, AS400, Expansion dry contact card
    Other Function
    Optional :Parallel Kit, Lightning protection components；PDU for VGDII-150M / 25
    Optional : Dust Filter ; Parallel Kit, Lightning protection components
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     UPS
    Model
    VGDII-080M/40
    VGDII-160M/40
    VGDII-240M/40
    VGDII-400M/40
    VGDII-100M/50
    VGDII-200M/50
    VGDII-300M/50
    VGDII-500M/50
    Phase
    3 phase in / 3 phase out
     SYSTEM CAPACITY
    Max. Capacity (VA)
    80 KVA
    160 KVA
    240 KVA
    400 KVA
    100 KVA
    200 KVA
    300 KVA
    500 KVA
    Max. Capacity (W)
    80 KW
    160 KW
    240 KW
    400 KW
    100 KW
    200 KW
    300 KW
    500 KW
    Power Module Capacity
    40KVA/40KW
    50KVA/50KW
    Max. Power Module No.
    2
    4
    6
    10
    2
    4
    6
    10
     MAIN INPUT
    Grid System
    3 Phases + Neutral + Ground
    Voltage
    380 / 400 / 415 VAC (Line-Line)
    Voltage Range
    Full load：304~478Vac (line-line)
    Others：228V~304Vac (line-line)
    load decreases linearly according to the min phase voltage
    Frequency
    50 / 60Hz
    Frequency Range
    40Hz to 70Hz
    Power Factor
    >0.99
    Current THDi
    <3% (full Linear Load)
    Dual Input
    Standard
    Optional
    Standard
    Standard
    Optional
    Standard
     OUTPUT
    Inverter Voltage
    380 / 400 / 415 VAC (Line-Line)
    Inverter Frequency
    50 / 60Hz
    Power Factor
    1
    Voltage Regulation
    1% for balance load; 1.5% for unbalance load
    Frequency Precision
    0.1%
    Crest factor
    3:1
    Output THDu
    <1.0% from 0% to 100% liner load
    <5.5% full non-linear load according to IEC/EN62040-3
    Inverter Overload
    <110%, 60 min; 110%~125%, 10 min; 125% ~ 150%, 1 min; >150%, 200ms
     BATTERY & CHARGER
    Battery Voltage
    ±240VDC
    Charger Voltage precision
    1%
    Charger Power
    MAX = 20% *Output Power
    Cold Start Function
    Standard
    Battery Number
    40pcs
     BYPASS INPUT
    Voltage
    380 / 400 / 415VAC (Line-Line)
    Voltage Range
    Settable, -40%∼+25%
    Frequency
    50 / 60Hz
    Frequency Range
    Settable Range: ± 1Hz, ± 3Hz, ± 5Hz
    Bypass Overload
    125% Long Time Operation
    125% to 130% for 10min
    130% to 150% for 1min
    >150% for 300ms
    110% Long Time Operation
    110% to 125% for 5min
    125% to 150% for 1min
    >150% for 1s
    125% Long Time Operation
    125% to 130% for 10min
    130% to 150% for 1min
    >150% for 300ms
    110% Long Time Operation
    110% to 130% for 5min
    130% to 150% for 1min
    >150% for 1s
     EFFICIENCY
    Normal Operation
    95%
    ECO Mode
    99%
    Battery Operation
    95%
     ENVIRONMENTAL
    Operation
    0 - 40°C
    Storage
    -40 - 70°C
    Relative Humidity
    0 - 95% (Non condensing)
    Noise
    72dB @ 100% load / 69dB @ 45% load(1m from surface)
    Altitude
    Normal Load: <1000m; Power derated 1% per 100m From 1000 to 2000m
     PHYSICAL
    Dimension (W x D x H) (mm)
    600 x 980 x 1150
    650 x 960 x 1600
    650 x 1095 x 2000
    1300 x 1100 x 2000
    600 x 980 x 1150
    650 x 960 x 1600
    650 x 1095 x 2000
    1300 x 1100 x 2000
    Cabinet Weight (kg)
    120
    170
    220
    450
    120
    170
    220
    450
    Power Module Dimension (W x D x H) (mm)
    510 x 700 x 178
    510 x 700 x 178
    Power Module Weight
    44
    45
     SYSTEM
    Display
    10.4" LED + LCD Touch Screen+Keyboard
    Interface
    Standard :RS232, USB, RS485, Dry Contact
    Optional : SNMP
    Other Function
    Optional : DustFilter
    Optional : Parallel Kit, Lightning protection components
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
    　Catalog  　



    POWERCOM VGDII Modular UPS provides Pure Sine Wave output for precision electronic equipment. The VGDII Modular UPS is designed to provide the safest protection for advanced Data Centers and Server Rooms. The VGDII - M with Double Conversion Topology brings higher quality output and performance. The VGDII - M LCD Display directly indicates information for a better user experience. POWERCOM VGDII Modular UPS combines high-tech design and good model performance, and is the best choice for advanced Data Centers and Server Rooms.
