  • PCM SLK, the most advanced grid PV-inverter in the world Converting sun light into electricity energy for home/industrial applications and powering up our world with free solar energy is now no longer just a dream

    •
     MODEL
    Model

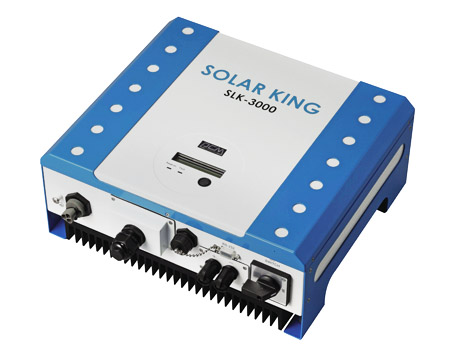

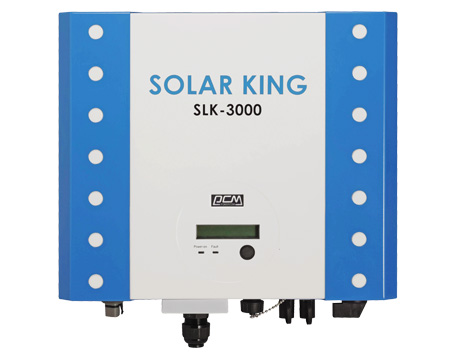

    SLK-3000

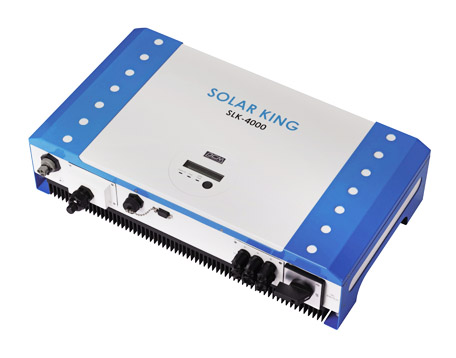

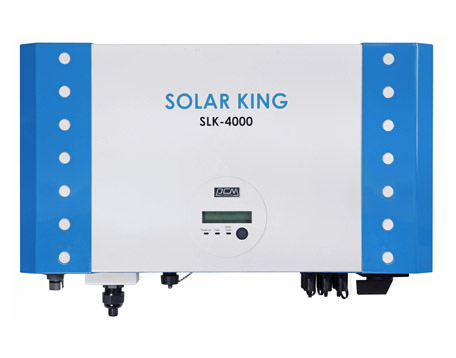

    SLK-4000

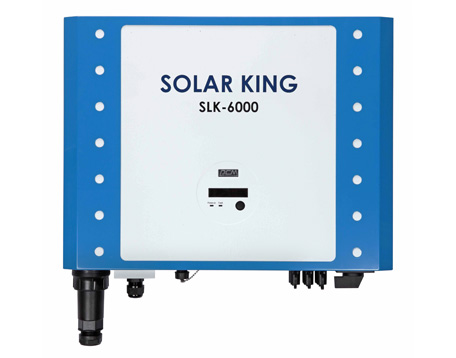

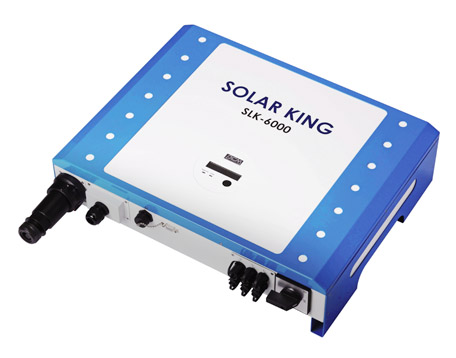

    SLK-6000

     INPUT (DC)
    Maximum Input Power
    3510W
    4700W
    6500W
    PV Open Voltage
    500VDC
    600VDC
    Nominal DC Voltage
    360V
    MPPT Voltage Range
    150 to 500VDC ±5%
    150 to 600VDC ±5%
    System Start-up Voltage
    100 ±5%
    Working Voltage
    100 ±5% to 500 ±5%
    100 ±5% to 600 ±5%
    Initial Feeding Voltage
    150 ±5%
    Max Input Current
    17.6ADC
    18.8ADC
    30ADC
    Full Rating Working Range
    200V to 500V
    250V to 500V
    205V to 600V
    Shutdown Voltage
    80V
    DC Voltage Ripple
    < 10%
    DC Insulation Resistance
    > 8M ohm
    DC Switch
    ON / OFF 20A
    ON / OFF 30A
    Attached DC Connector
    Tyco or MC4 contact(1 pair)
    DC Connector
    Tyco or MC4 contact
    (1 pair)-cable type
    Tyco or MC4 contact(3 pair)-cable type

     OUTPUT
    Normal Output Power
    3000W
    4000W
    6000W
    Maximum Output Power
    3300W
    4400W
    6000W
    Operational Voltage Range
    184V minimum / 264V maximum
    Operational Normal Voltage
    230Vac
    Operational Frequency Range
    50/60Hz auso selection, 47.5≦f50≦53 for 50Hz, 57≦f60≦63 for 60Hz
    Nominal Output Current
    13.0A
    17.4A
    26.1A
    O / P Current Distortion
    THD < 4%, each harmonics < 3%
    Power Factor
    > 0.99
    DC Current Injection
    < 0.5% of rated inverter output current
    Internal Power Consumption
    < 7W
    < 10W
    Standby Power(at night)
    < 0.1W
    Minimum Conversion Efficiency
    (DC/AC)
    > 90% under input voltage > 210V, load > 20%
    Maximum Conversion Efficiency
    (DC/AC)
    > 95%
    > 96%
    European Efficiency
    > 94%
    > 95%
    GFCI Threshold
    See ground fault current detection
    Ground Current Detection Range
    0 to 500mA
    Ground Current Detection Frequency
    0 to 700Hz

     ENVIRONMENT
    Protection Degree
    IP 65
    Operation Temperature
    -20°C ~ 55°C
    Humidity
    0 to 95%, non-condensing
    Heat Dissipation
    Convection
    Acoustic Noise Level
    <40dB, A-weighted, frequency up to 20k Hz
    Altitude
    Up to 3000m without power derating, 5°C dated for each additional 500m

     PHYSICAL
    Dimensions(WxDxH)(mm)
    352 x 300 x 143
    550 x 300 x 133
    550 x 420 x 143
    Weights(Kgs)
    14
    21
    27
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product
