UPS
|
Model
|

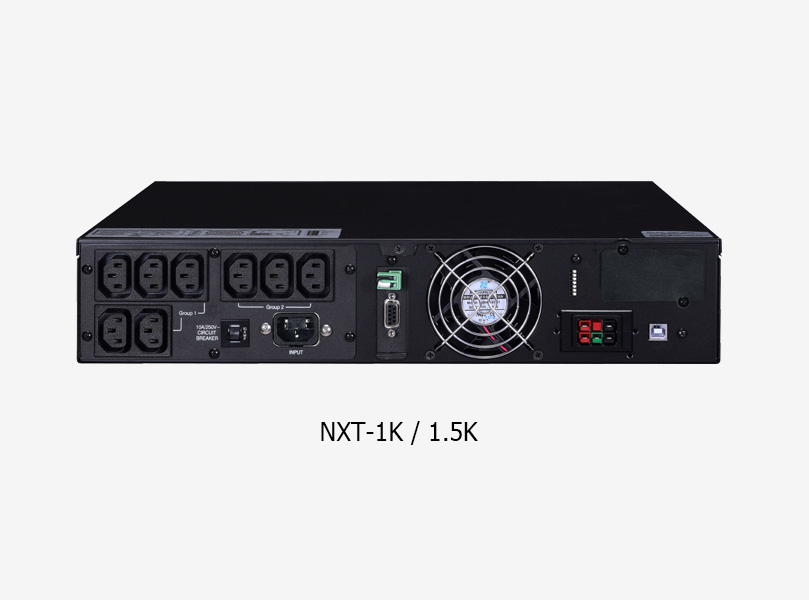

NXT-1000
|
NXT-1500
|

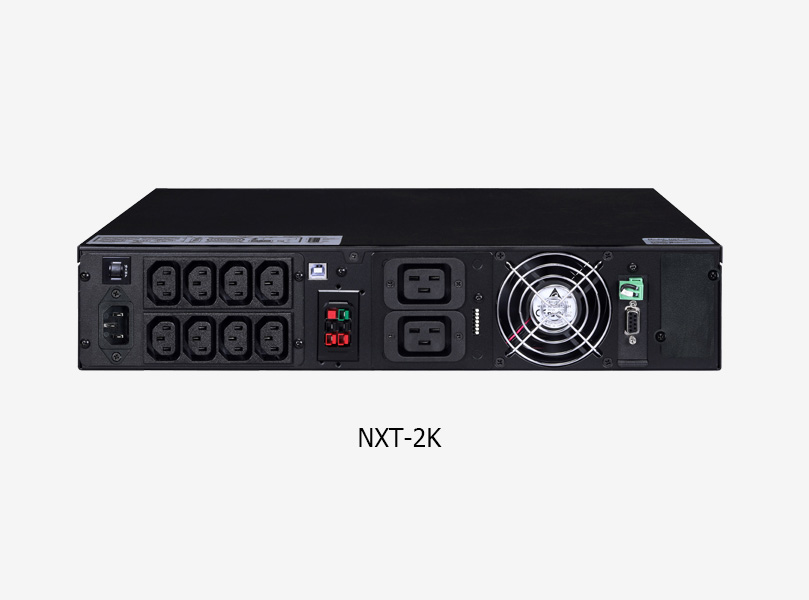

NXT-2000
|

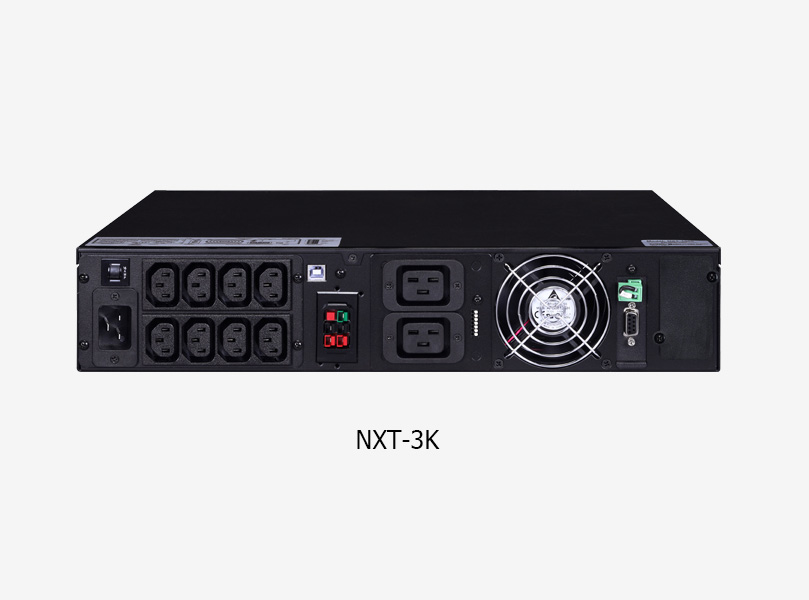

NXT-3000
|
Capacity(VA)
|
1000 VA
|
1500 VA
|
2000 VA
|
3000 VA
|
Capacity(Watts)
|
1000 W
|
1500 W
|
2000 W
|
3000 W
|

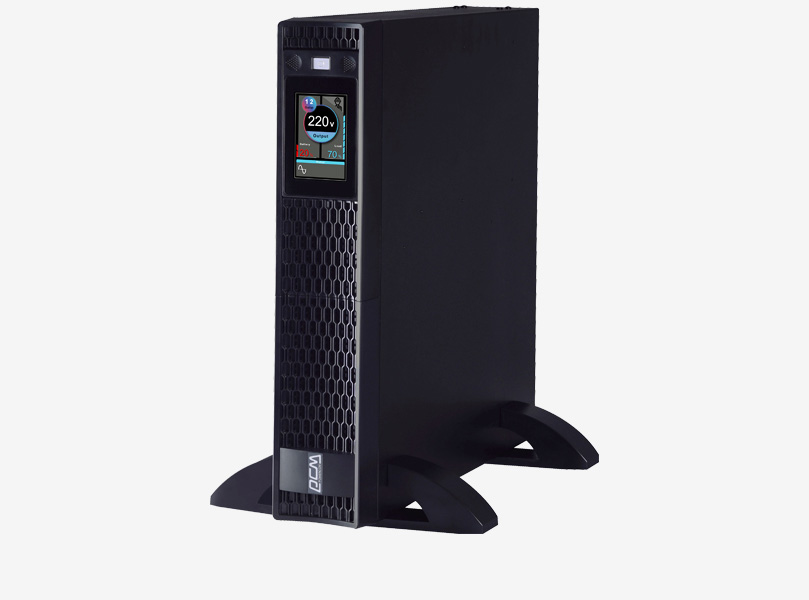

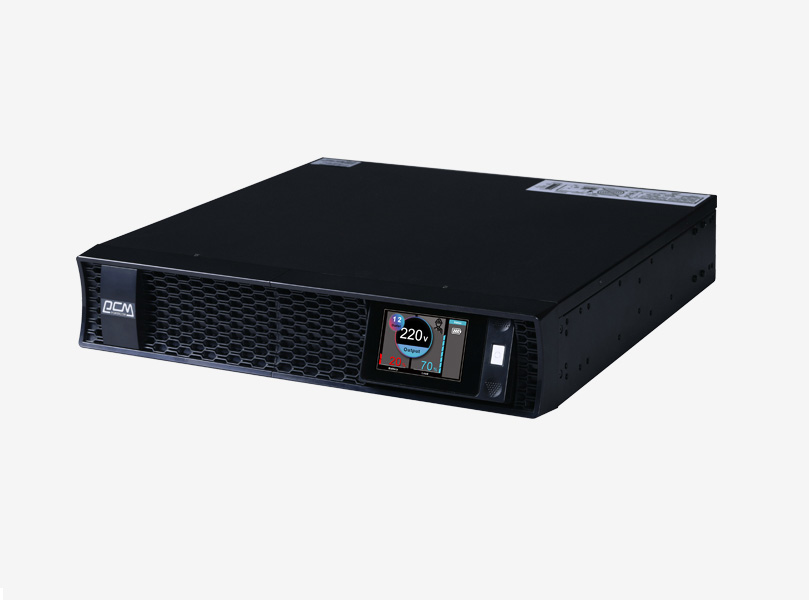

Form
|
Rack and Tower Type
|
Phase
|
Single Phase
|
Energy Saving
|
Yes - ECO Mode Efficiency > 94%
|
INPUT
|
Voltage
|
208 ~ 300 VAC
|
Voltage Range
|
120 - 300 VAC, < 25% Load
140 - 300 VAC, < 50% Load
160 - 300 VAC, < 75% Load
180 - 300 VAC, < 100% Load
|
Frequency Range
|
50 / 60 Hz (Auto Sensing)
|
Power Factor
|
> 0.98
|
Cold Start
|
Yes
|
OUTPUT
|
Rated Power Factor
|
1.0
|
Waveform
|
Pure Sine Wave
|
Voltage
|
200 / 208 / 220 / 230 / 240 VAC ± 2%
|
Frequency
|
50 / 60 Hz ± 0.25 Hz
|
Transfer Time
|
0 ms
|
Harmonic Distortion
|
≤ 2.5% THD at Linear Load
|
Crest Factor
|
3 : 1
|
Load segment
|
Yes
|
EPO Function
|
Yes
|
PROTECTION
|
Overload
|
Line Mode
|
110% - 124% for 10 minutes
125% - 149% for 2 minutes
150% - 199% for 10 seconds
> 200% for 240 milliseconds
|
Battery Mode
|
105% - 110% for 10 seconds
110% - 119% for 3 seconds
120% - 150% for 1.5 seconds
> 150% for 240 milliseconds
|
Surge Protection
|
IEC 61000-4-5 Level 3
|
Bypass
|
Internal Bypass(Automatic and Manual)
|
Short Circuit Protection
|
UPS Output Cut Off Immediately
|
BATTERY
|
Model
|
NXT-1000
|
NXT-1500
|
NXT-2000
|
NXT-3000
|
Type
|
12V 7Ah
|
12V 9Ah
|
12V 7Ah
|
12V 9Ah
|

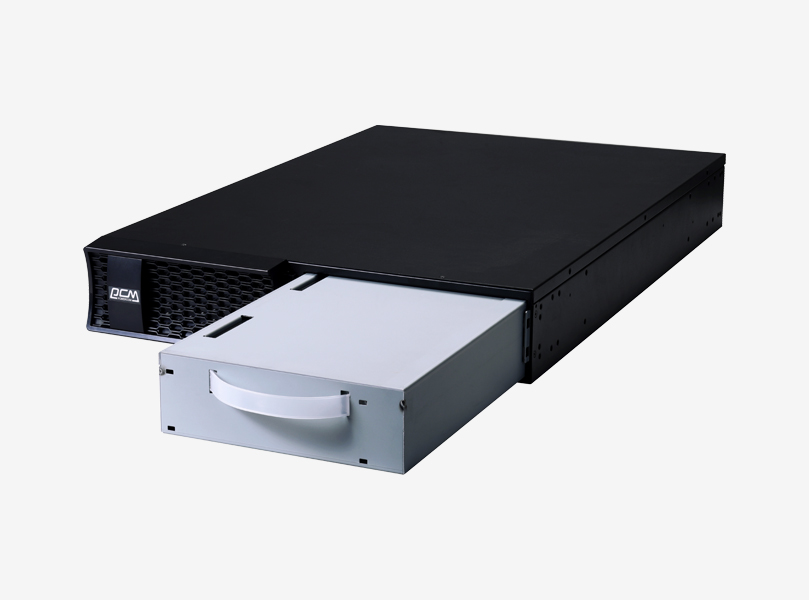

Intermal Batt.
|
Yes
|
Quantity
|
3
|
6
|
Sealed, Maintenance Free
|
YES
|
Typical Recharge Time
|
3 Hr to 90%
|
External Battery Cabinet
|
Option
|
External Battery Connector
|
Option
|
MANAGEMENT & COMMUNICATION
|

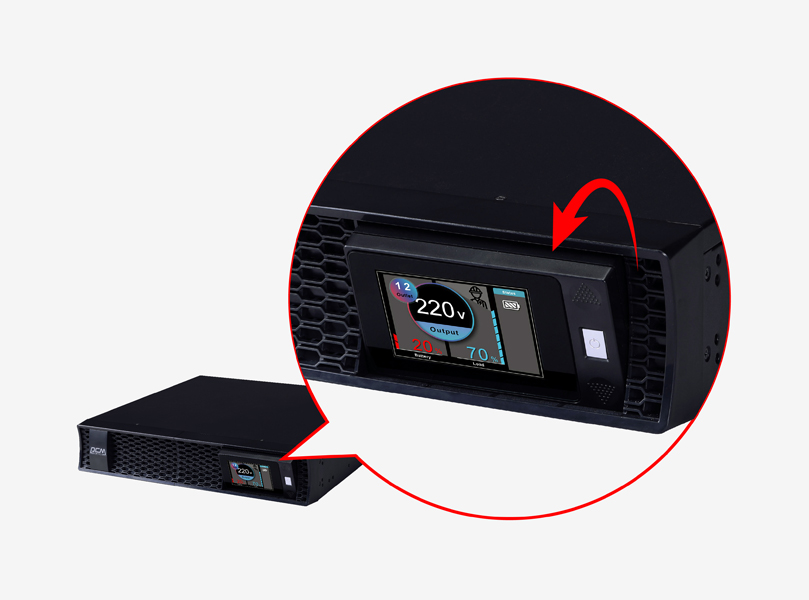

LCD Control Panel
|
Yes
|
Communication Port
|
RS232, USB(B-type)
|
SNMP Slot
|
Option
|
Audible Alarms
|
Yes
|
PHYSICAL
|
Power Module
|
Dimensions(WxDxH)(mm)
|
428 x 435 x 84
|
428 x 645 x 84
|
Weights(Kgs)
|
17
|
18.7
|
30.6
|
32.7
|
Shipping Dimensions(mm)
|
546 x 552 x 206
|
550 x 750 x 220
|
Shipping Weights(Kgs)
|
19.8
|
21.5
|
34.4
|
36.5
|

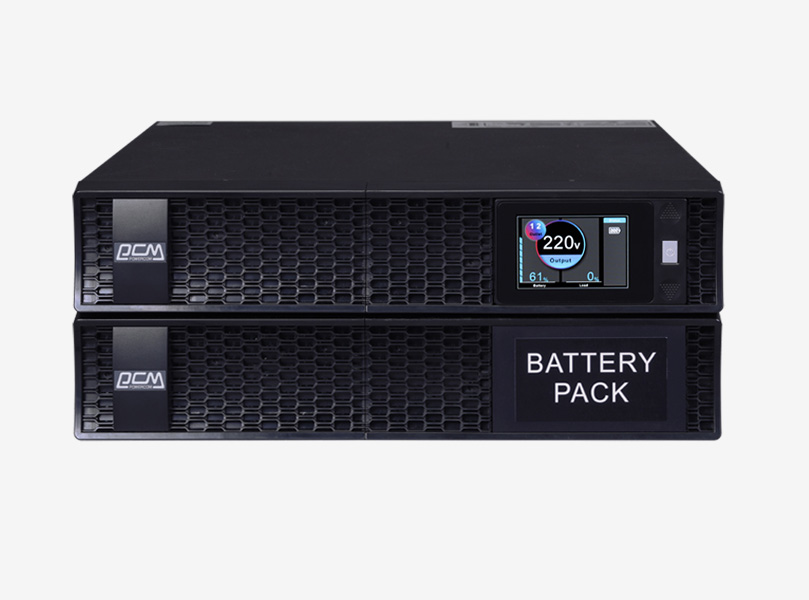

Battery Module
|
Dimensions(WxDxH)(mm)
|
428 x 435 x 84
|
428 x 645 x 84
|
Weights(Kgs)
|
21.3
|
39.7
|
Shipping Dimensions(mm)
|
546 x 552 x 206
|
500 x 750 x 220
|
Shipping Weights(Kgs)
|
24.1
|
42.9
|
* Specifications are for reference, actual information should be based on real product
