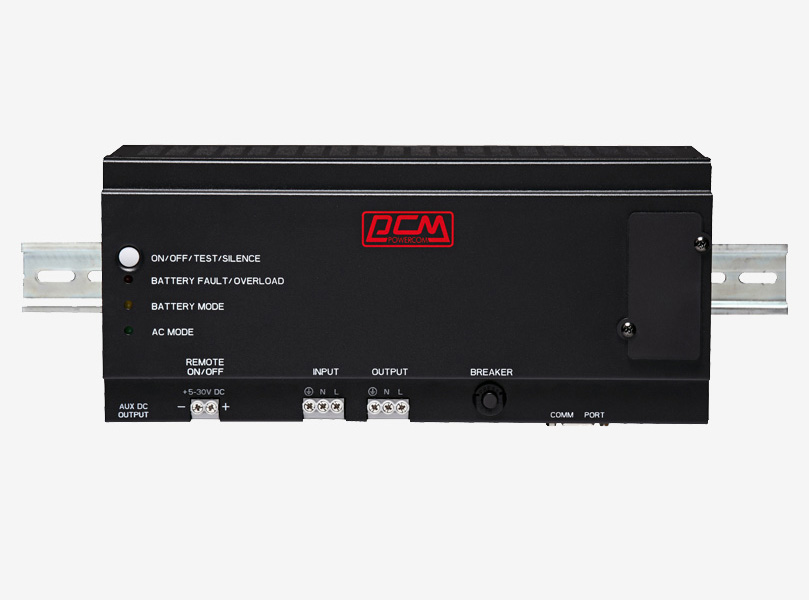

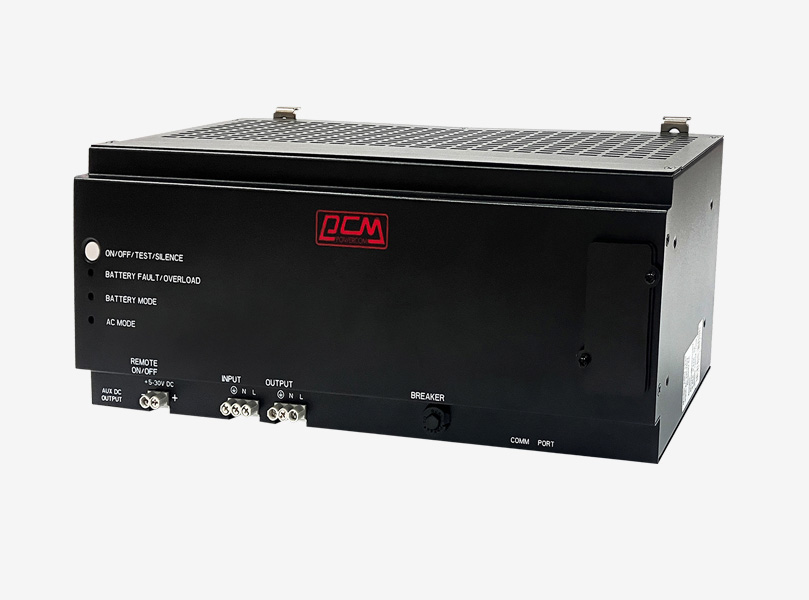

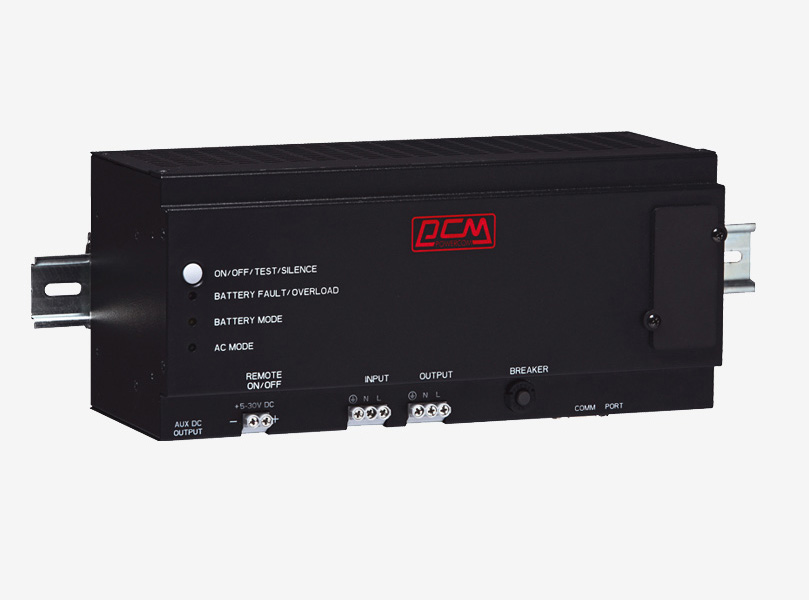

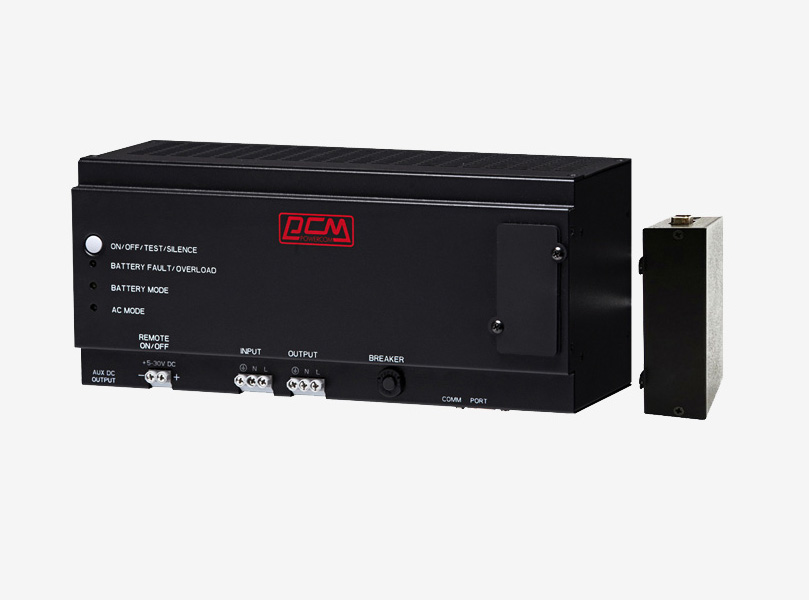

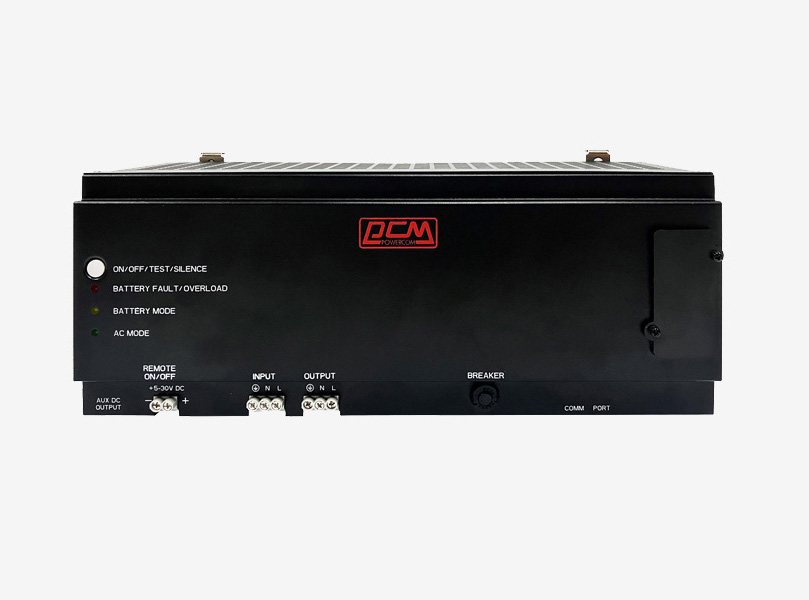

   DRU - Din Rail

  • OFF-Line UPS for Specific Demand

  • Din Rail Mounting Available

  • Cold Start Function Capability

  • Lightweight and Compact Size Design

  • Remote Power on/off Control Available

  • Surge, Short Circuit, Overload Protections

  • SNMP, Modbus, Dry Contact Relay Support

  • DRU - 500 / 850

  •  UPS
    Model
    DRU-500
    DRU-850
    Capacity(VA)
    500 VA
    850 VA
    Capacity(Watts)
    300 W
    510 W
    Form
    Din Rail Mounting Type

     INPUT
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Voltage Range
    85 - 138 or 165 - 276 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Simulated Sine Wave
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 0.3 Hz
    Transfer Time
    2 - 4 ms(Typical)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ11 / RJ45

     BATTERY
    Model
    DRU-500
    DRU-850
    Battery Capacity
    12V / 7.2Ah * 1
    12V / 9Ah * 1
    Sealed, Maintenance Free
    Yes
    Typical Recharge Time
    8 hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Panel
    Communication Port
    RS232
    Communication

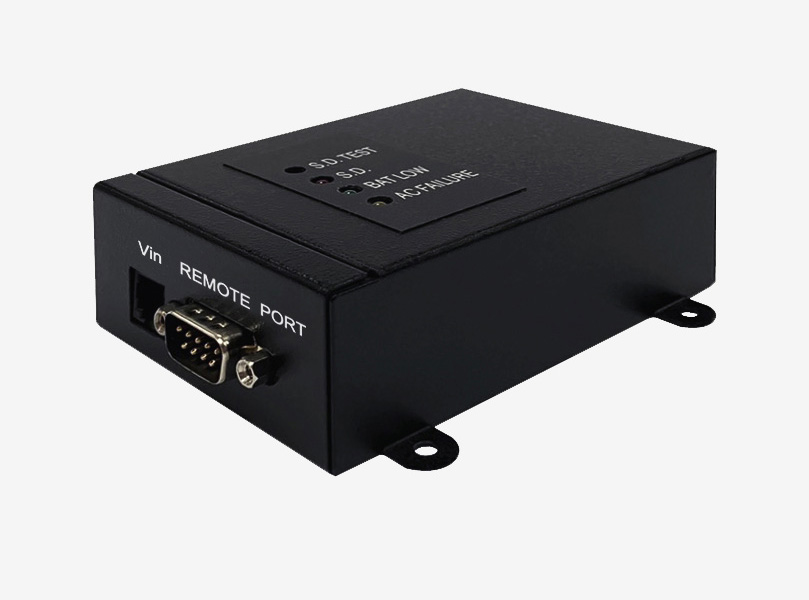

    Option : SNMP card / Modbus card / Dry Contact Relay Box

     PHYSICAL
    Dimensions(WxDxH)(mm)
    282 x 110 x 124
    Weights(Kgs)
    4.3
    4.9
    Shipping Dimensions(mm)
    381 x 243 x 231
    Shipping Weights(Kgs)
    5.1
    5.7

     Alarm
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 4 seconds
    Low Battery
    Beep every 0.5 seconds

     Environment
    Operating Humidity
    0~90% RH at 0~40°C (Non-condensing)
    Audible Noise
    Less than 40 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog
     User Manual
     SNMPCard - DA807
     Modbus - NET485
     Certification
     Monitoring
     Upsmon Pro - Windows
     Upsmon Pro - Linux
     SNMPCard - DA807 (BOX)
     Modbus - NET485 (BOX)



    POWERCOM DRU Line Interactive UPS with thin outfit and power protection function are the best choice for office, home and telecom system. POWERCOM DRU Line-interactive UPS with Auto Voltage Regulator (AVR) stabilize fluctuate voltage including over-voltage, under-voltage and other unfluctuating voltage problem and output with clean and stable voltage for essential device. POWERCOM DRU Line Interactive series attached with colorful LCD diagram indicator, show on UPS status and upgrades user experience. DRU Line-interactive UPS series apply with advanced microprocessor control, energy saving green topology and audible alarm system, brings up energy-saving and efficient operating function for essential device. DRU Line Interactive UPS series with Auto Voltage Regulator (AVR) stabilize fluctuate voltage, green topology and microprocessor control, are the best choice for office, home and telecom system.
