PRODUCT  >>  Line - Interactive  >> RPT PLUS

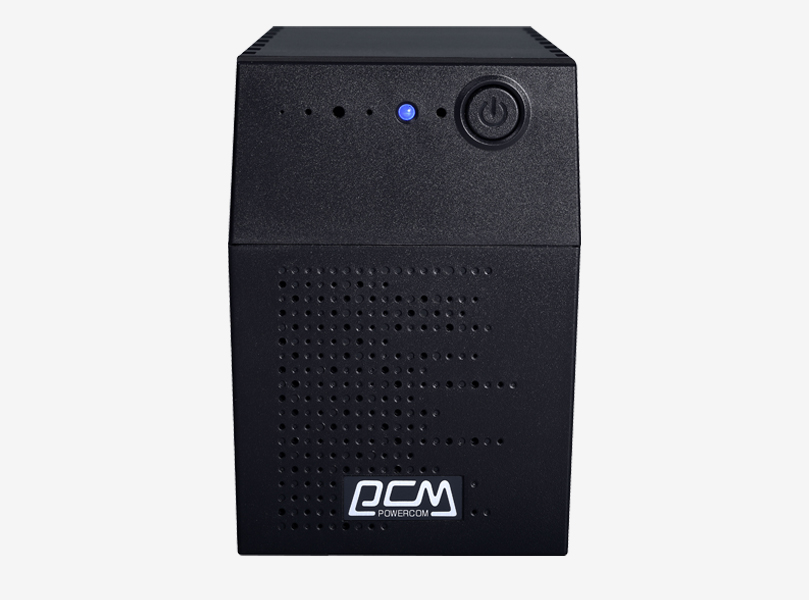

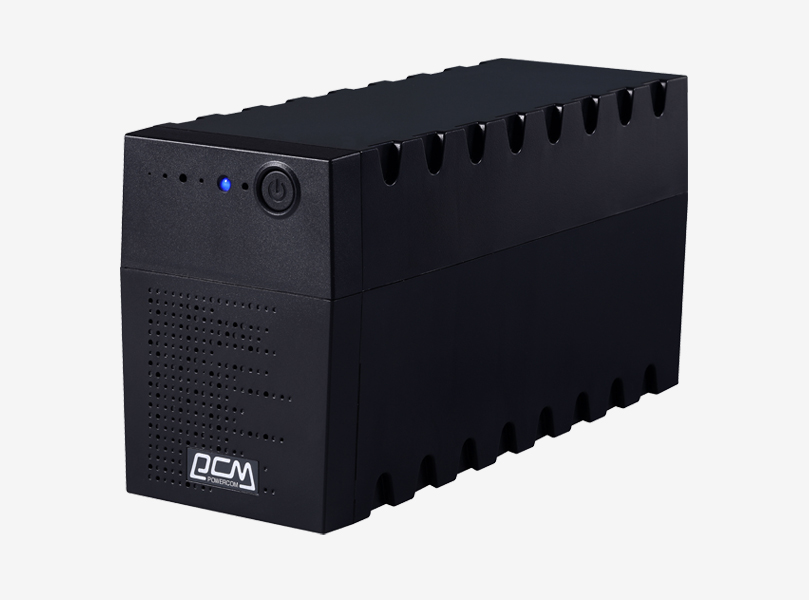

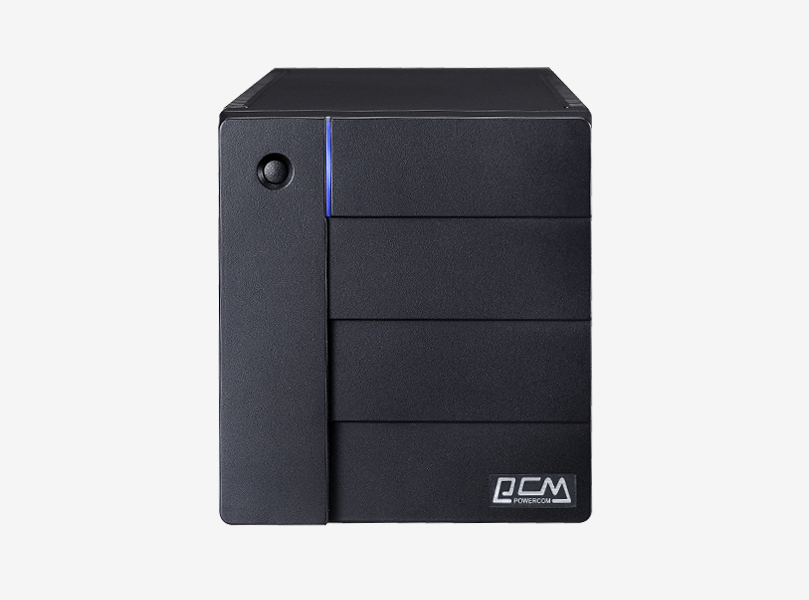

   RPT PLUS

  • USB Type-A & C for Multi-Device Charging (LCD Type)

  • Advanced Battery Management to Maintain Efficiency

  • Auto Self-Diagnose and Alarm Warnings

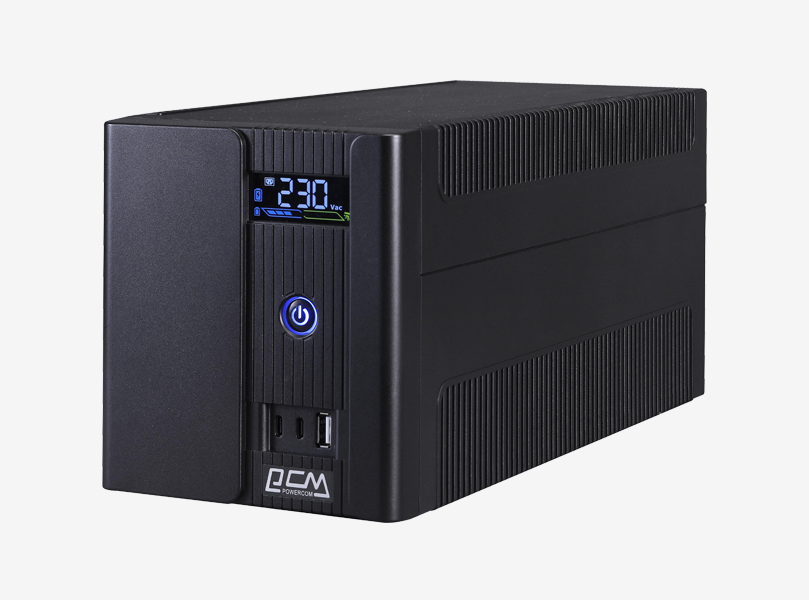

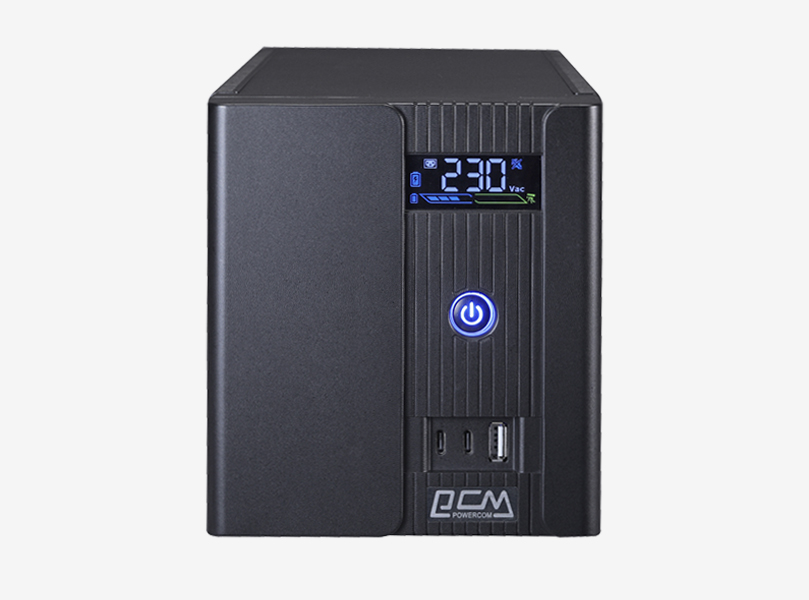

  • Color LCD Display with Intuitive Icons

  • Line-Interactive UPS Design

  • Surge, Short Circuit, Overload Protections

  • RPT PLUS - 650 / 850 / 1050 / 1200 / 1500 / 1600 / 2200VA

    •  UPS
    Model

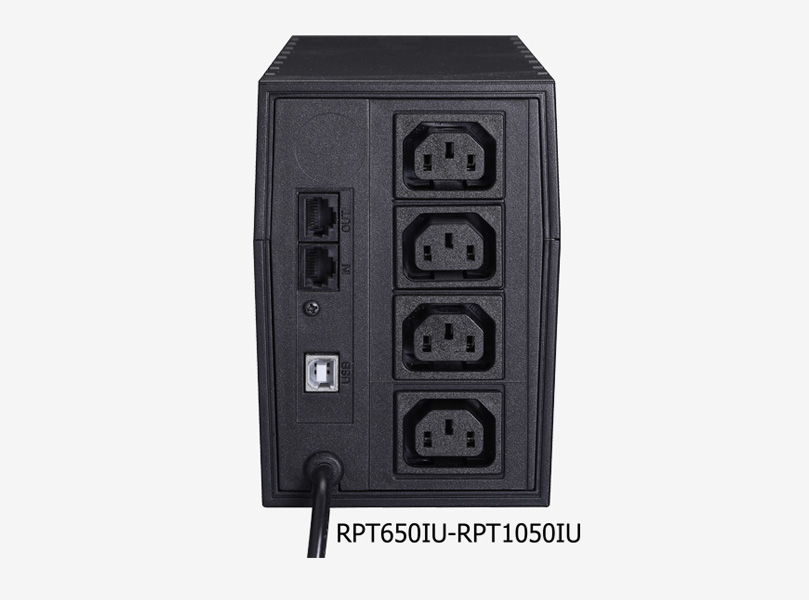

    RPT-650IU
    RPT-850IU
    RPT-1050IU
    RPT-650EU
    RPT-850EU
    RPT-1050EU
    Capacity(VA)
    650 VA
    850 VA
    1050 VA
    Capacity(Watts)
    390 W
    510 W
    630 W
    Form
    Tower Type
     INPUT
    Voltage
    230 VAC
    Voltage Range
    160 - 290VAC ±3%
    Frequency Range
    50Hz / 60Hz ±10%

     OUTPUT
    Voltage
    230 VAC
    Frequency
    50 / 60 Hz (Auto Sensing)
    Transfer Time
    2 - 4 ms (Typical)
    Waveform
    Simulated Sine Wave

     BATTERY
    Type
    12V7Ah
    12V9Ah
    Quantity
    1
    Sealed, Maintenance Free
    Yes
    Typical Recharge Time
    8 hr to 90%

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ45

     Management & Communication
    Indicator
    LED
    Communication Port
    USB B type

     PHYSICAL
    Dimension (WxDxH)(mm)
    100 x 278 x 143
    Weight (kgs)
    3.9
    4.9
    5.1
    Shipping Dimension (mm)
    147 x 329 x 227
    Shipping Weight (kgs)
    4.2
    5.2
    5.4

     ALARM
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 2 seconds
    Low Battery
    Beep every 0.5 second

     ENVIRONMENT
    Operating Humidity
    0 ~ 95% RH at 0 ~ 40℃(Non-condensing)
    Audible Noise
    Less than 40 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product



     UPS
    Model

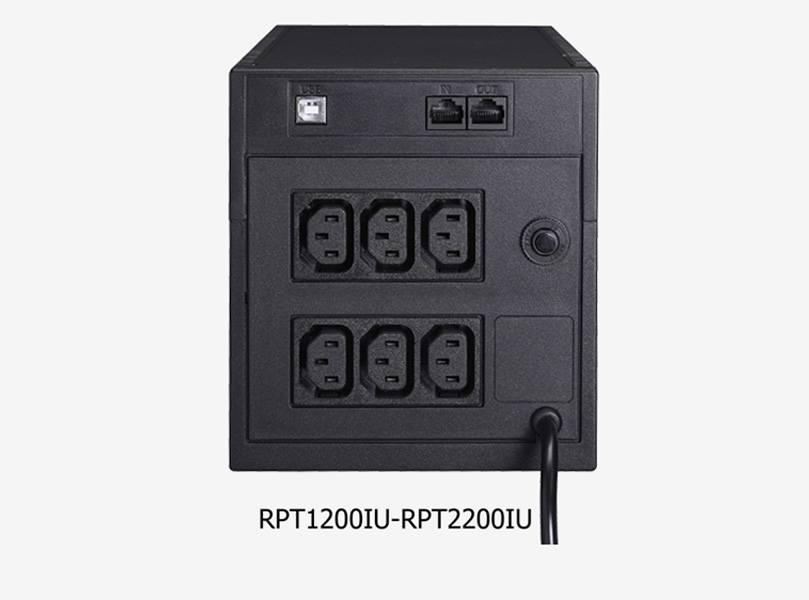

    RPT-1200IU
    RPT-1500IU
    RPT-2200IU
    RPT-1200EU
    RPT-1500EU
    RPT-2200EU
    Capacity(VA)
    1200 VA
    1500 VA
    2200 VA
    Capacity(Watts)
    720 W
    900 W
    1320 W
    Form
    Tower Type
     INPUT
    Voltage
    230 VAC
    Voltage Range
    160 - 290VAC ±3%
    Frequency Range
    50Hz / 60Hz ±10%

     OUTPUT
    Voltage
    230 VAC
    Frequency
    50 / 60 Hz (Auto Sensing)
    Transfer Time
    2 - 4 ms(Typical)
    Waveform
    Simulated Sine Wave

     BATTERY
    Type
    12V7Ah
    12V9Ah
    Quantity
    2
    Sealed, Maintenance Free
    Yes
    Typical Recharge Time
    8 hr to 90%

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ45

     Management & Communication
    Indicator
    LED
    Communication Port
    USB B type

     PHYSICAL
    Dimension (WxDxH)(mm)
    147 x 360 x 164
    Weight (kgs)
    8.2
    10.2
    10.7
    Shipping Dimension (mm)
    233 x 449 x 277
    Shipping Weight (kgs)
    9.1
    11.1
    11.6

     ALARM
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 2 seconds
    Low Battery
    Beep every 0.5 second

     ENVIRONMENT
    Operating Humidity
    0 ~ 95% RH at 0 ~ 40℃(Non-condensing)
    Audible Noise
    Less than 40 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product



     UPS
    Model

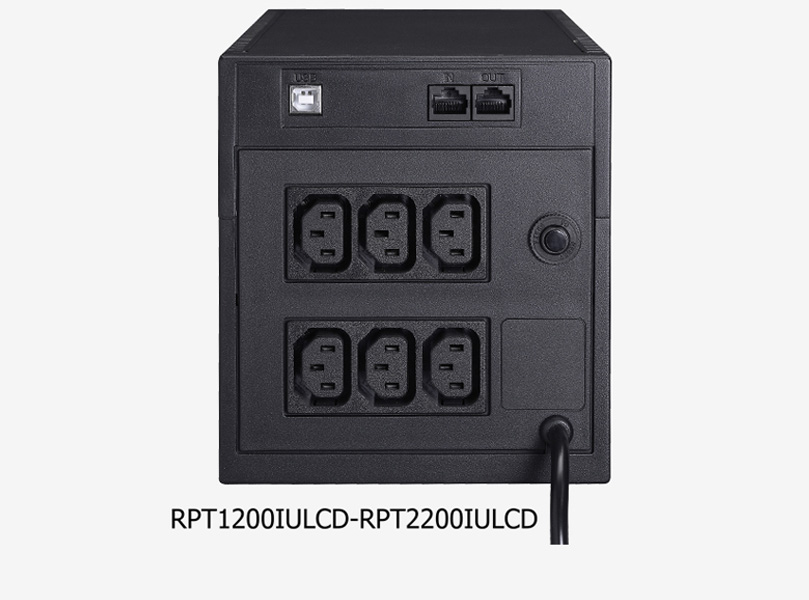

    RPT-1200IULCD
    RPT-1500IULCD
    RPT-2200IULCD
    RPT-1200EULCD
    RPT-1500EULCD
    RPT-2200EULCD
    Capacity(VA)
    1200 VA
    1600 VA
    2200 VA
    Capacity(Watts)
    720 W
    960 W
    1320 W
    Form
    Tower Type
     INPUT
    Voltage
    230 VAC
    Voltage Range
    160 - 290VAC ±3%
    Frequency Range
    50Hz / 60Hz ±10%

     OUTPUT
    Voltage
    230 VAC
    Frequency
    50 / 60 Hz (Auto Sensing)
    Transfer Time
    2 - 4 ms(Typical)
    Waveform
    Simulated Sine Wave

     BATTERY
    Type
    12V7Ah
    12V9Ah
    Quantity
    2
    Sealed, Maintenance Free
    Yes
    Typical Recharge Time
    8 hr to 90%

     USB Charger
    USB Charger
    USB Type A*1 & Type C*2 (Comply QC & PD 18W charging)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ45

     Management & Communication
    Indicator
    LED & LCD
    Communication Port
    USB B type

     PHYSICAL
    Dimension (WxDxH)(mm)
    147 x 360 x 164
    Weight (kgs)
    8.3
    10.3
    10.8
    Shipping Dimension (mm)
    233 x 449 x 277
    Shipping Weight (kgs)
    9.2
    11.2
    11.7

     ALARM
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 2 seconds
    Low Battery
    Beep every 0.5 second

     ENVIRONMENT
    Operating Humidity
    0 ~ 95% RH at 0 ~ 40℃(Non-condensing)
    Audible Noise
    Less than 40 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product



     Document
     Catalog
     User Manual - 1
     User Manual - 2
     Monitoring
     Upsmon Pro Windows
     Upsmon Pro Linux



    POWERCOM RPT PLUS Line-Interactive UPS series delivers dependable backup power with simulated sine wave output for home, SOHO, and office use. Built-in AVR (Automatic Voltage Regulation) ensures stable output under fluctuating utility power, while Advanced Battery Management optimizes battery performance and lifespan. The LCD model features a color display with intuitive icons for clear, real-time UPS status monitoring, plus one USB Type-A and two USB Type-C ports supporting QC and PD 18W fast charging. Green Mode reduces unnecessary power consumption, and UPSMON PRO enables convenient UPS monitoring and management. RPT PLUS is an ideal solution for protecting computers, networking equipment, and other essential devices.
