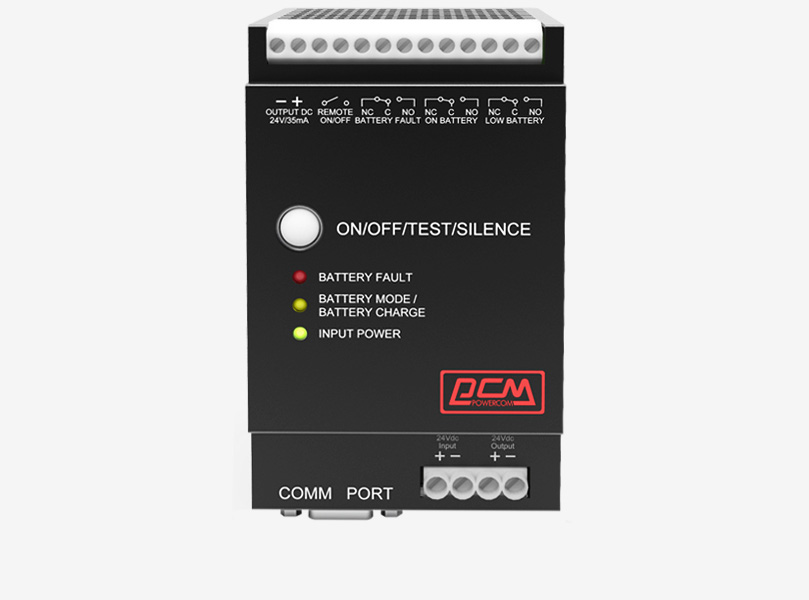

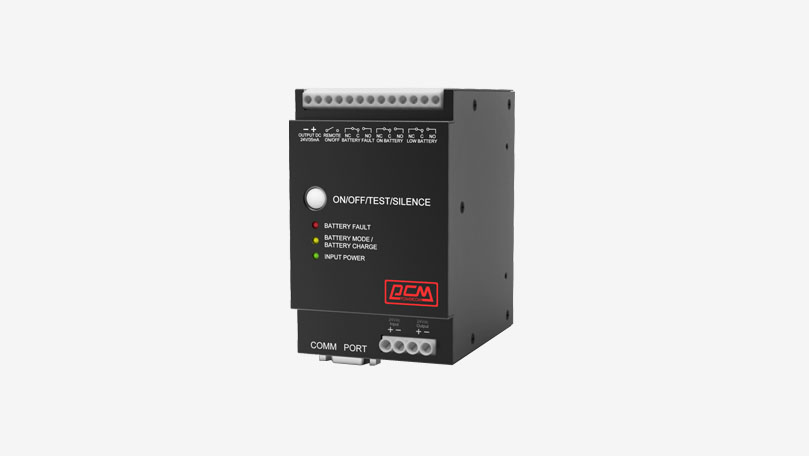

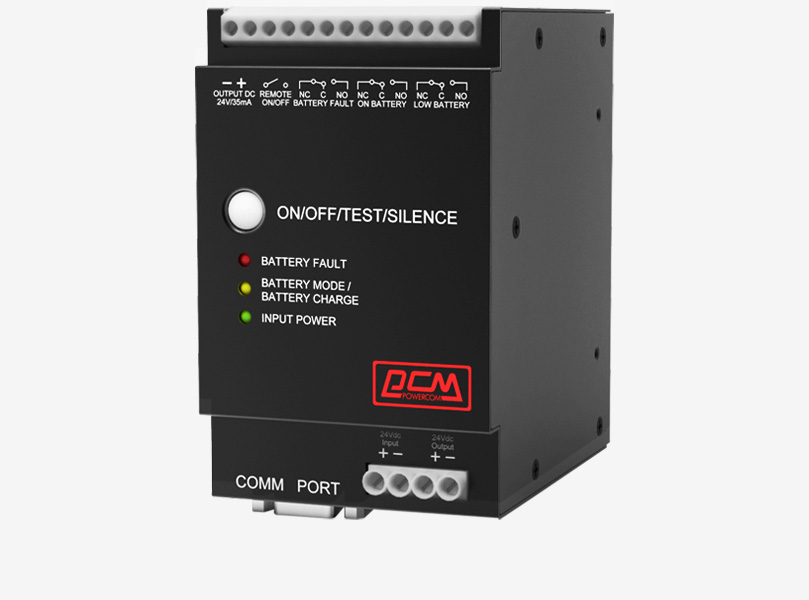

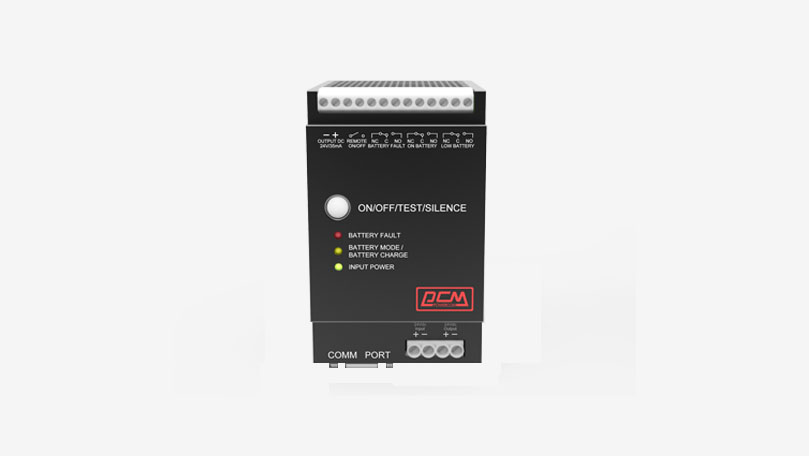

   DRD - Din Rail DC UPS

  • Output DC power

  • Lightweight and compact industrial design

  • Din Rail Mounting design

  • Remote on / off control

  • Cold start capability

  • Overload, short circuit protection

  • DRD - 240 / 480

  •  UPS
    Model
    DRD-240
    DRD-480
    Capacity(Watts)
    240 W
    480 W
    Form
    Din Rail Mounting Type

     INPUT
    Voltage
    24 VDC
    Voltage Range
    22.5 - 30 VDC

     OUTPUT
    Voltage
    21 - 30 VDC
    Transfer Time
    0 ms

     PROTECTION
    Full Protection
    Overload, Short Circuit

     CHARGING
    Charger Voltage
    27.6V max.
    Charger Current
    0.5A max.
    Time to Fully Charge
    8 hours to 90% capacity after fully discharge
    Charge Rate
    0.1C

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Panel
    Communication Port
    RS232 / Dry Contact

     PHYSICAL
    Dimensions(WxDxH)(mm)
    122.5 x 75.9 x 109.4
    Weights(Kgs)
    0.97
    Shipping Dimensions(mm)
    171 x 125 x 162
    Shipping Weights(Kgs)
    1.28

     Alarm
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 4 seconds
    Low Battery
    Beep every 0.5 seconds

     Environment
    Operating Humidity
    0~90% RH at 0~50°C (Non-condensing)
    Audible Noise
    Less than 40 dB

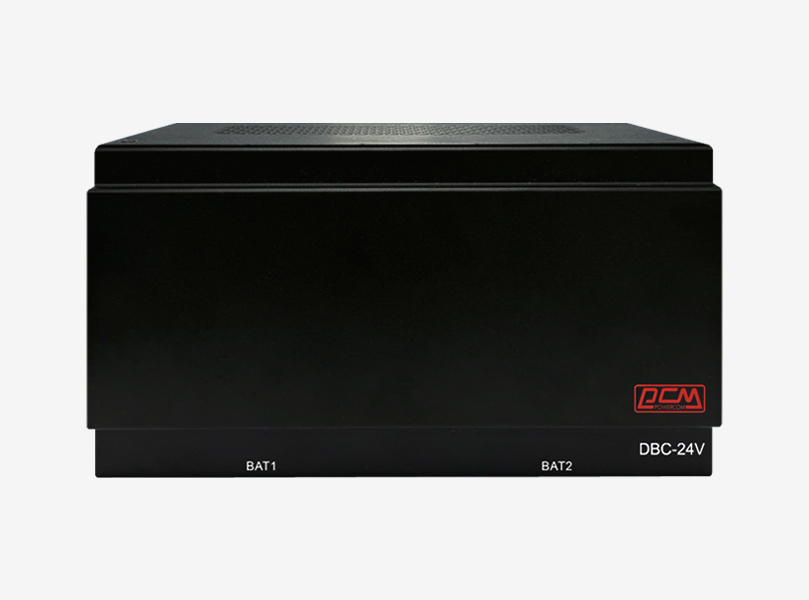

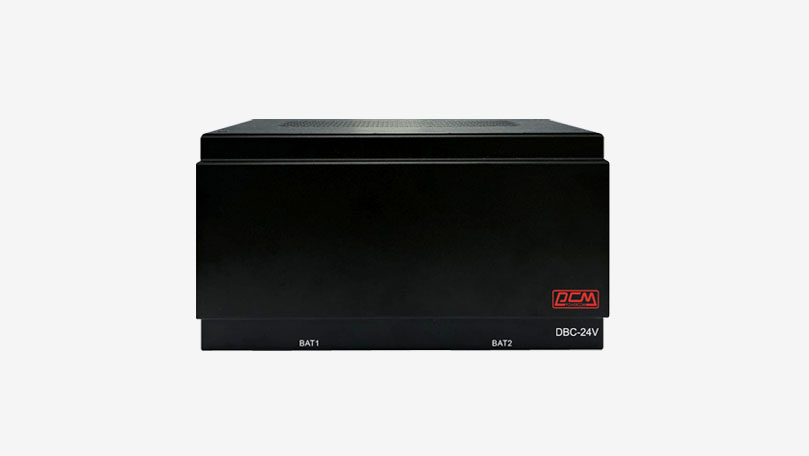

     External Battery Cabinet (DBC-24V)
    Nominal Voltage
    24 VDC
    Type & Quantity
    12V 5AH x 2
    Sealed, Maintenance Free
    Yes
    Protection
    Fuse : 30A
    Terminal Connector Type
    Polarized Powerpole Connectors
    External Battery Cabinets Quantity(Max.)
    4 sets
    Dimensions (WxDxH)(mm)
    210 x 123.9 x 110
    Weight (kgs)
    5.75
    Shipping Dimensions(mm)
    298 x 203 x 197
    Shipping Weight (kgs)
    6
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog
     User Manual
     Certification
     Monitoring
     Upsmon Pro - Windows
     Modbus - NET485 (BOX)



    POWERCOM's DRD Series is a lightweight, compact DC UPS designed for factory automation and industrial control systems requiring reliable DC power. It supports connection to up to four external battery cabinets (DBC-24V) to extend backup time based on application needs. With Din Rail Mounting, remote on / off control, and cold start capability, the DRD ensures flexible deployment in industrial equipment. Built-in overload and short circuit protection provide enhanced system safety and stability.
