DRU- DRU


  • OFF-Line UPS for Specific Demand

  • Din Rail Mounting Available

  • Remote Power on/off Control Available

  • Cold Start Function Capability

  • Lightweight & Compact Size for Easy Installation

  • Surge, Short Circuit, Overload Protections

  • SNMP, Modbus, Dry Contact Relay Support

  • DRU - 500 / 850

    •
     UPS
    Model
    DRU-500
    DRU-850
    Capacity(VA)
    500 VA
    850 VA
    Capacity(Watts)
    300 W
    510 W
    Form
    Din Rail Mounting Type

     INPUT
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Voltage Range
    85 - 138 or 165 - 276 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Simulated Sine Wave
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 0.3 Hz
    Transfer Time
    2 - 4 ms(Typical)

     BATTERY
    Battery Capacity
    12V / 7.2Ah * 1
    12V / 9Ah * 1
    Sealed, Maintenance Free
    Yes
    Typical Recharge Time
    8 hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Panel
    Communication Port
    RS232
    Communication
    Option : SNMP card / Modbus card / Dry Contact Relay Box

     PHYSICAL
    Dimensions(WxDxH)(mm)
    282 x 110 x 124
    Weights(Kgs)
    4.3
    4.9
    Shipping Dimensions(mm)
    381 x 243 x 231
    Shipping Weights(Kgs)
    5.1
    5.7

     Alarm
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 4 seconds
    Low Battery
    Beep every 0.5 seconds

     Environment
    Operating Humidity
    0~90% RH at 0~40°C (Non-condensing)
    Audible Noise
    Less than 40 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual Information should be based on real product

     Document
    　Catalog  　
    　User Manual  　
    　Certification  　
     Monitoring
    　Upsmon Pro Windows  　
    　Upsmon Pro Linux  　
    　SNMPCard - DA807 (Box)  　
    　SNMPCard - DA807 (Box) : User Manual  　
    　Modbus - NET485 (Box)  　
    　Modbus - NET485 (Box) : User Manual  　

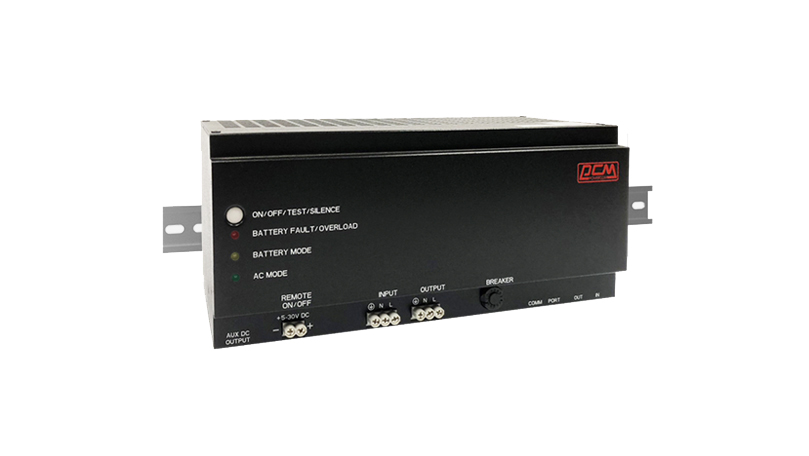

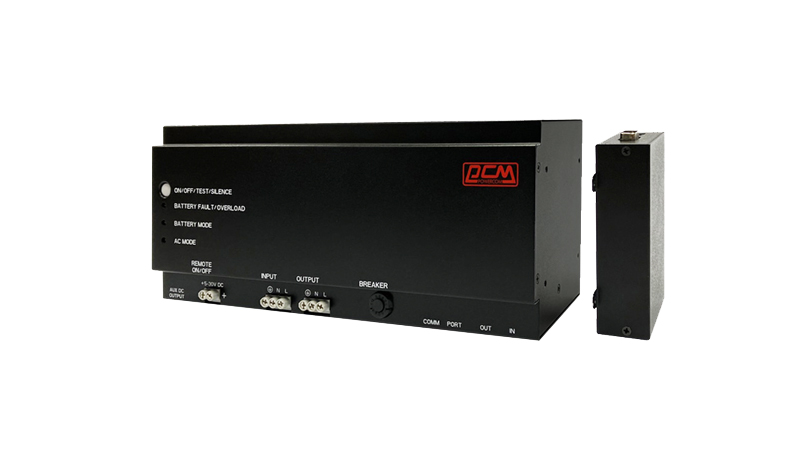

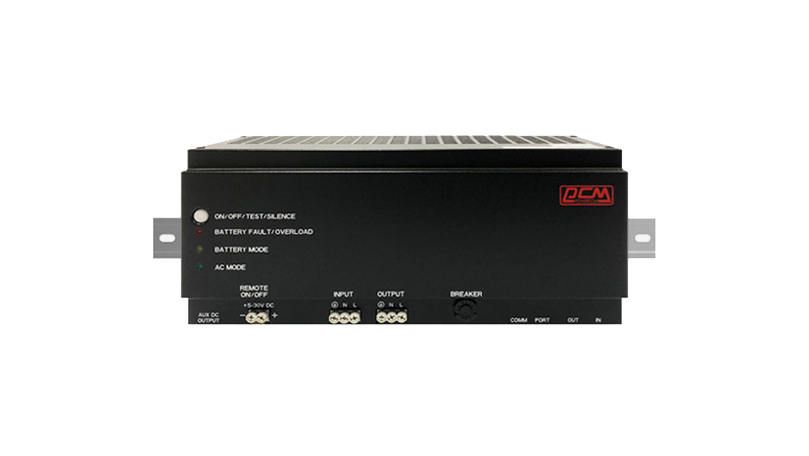

    POWERCOM Din Rail UPS provides power protection for specific industrial equipment. DRU series are suitable for industrial din rail mounting device. Light weight and compact size of DRU series plus din rail function, allows easy installation for industrial, technic equipment installation. DRU series contain clear LED display, RS232 communication port for easy operating, signal communication and power saving feature. Attached with remote on / off button on DRU series, brings up convenience of UPS setting. DRU series provides overload, power protection, and surge protection on connected electronic device. POWERCOM DRU series combine UPS with din rail mounting function are highly available and reliable for automation control and manufacture industry.
