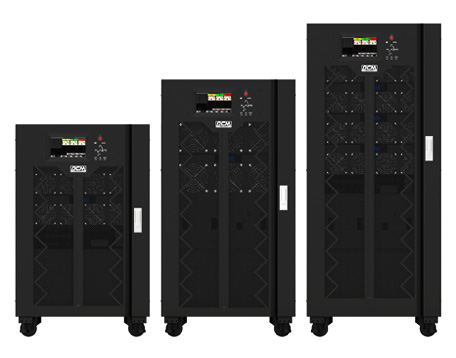

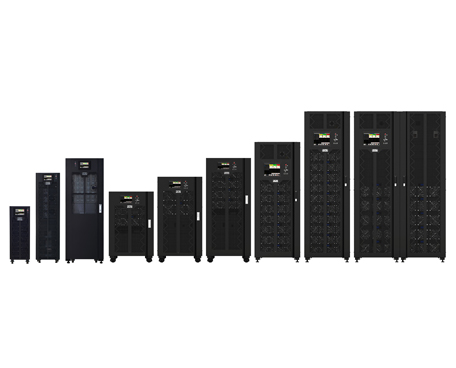

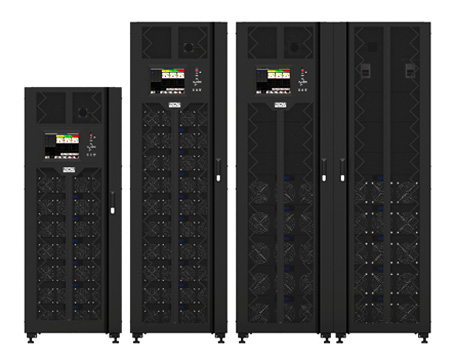

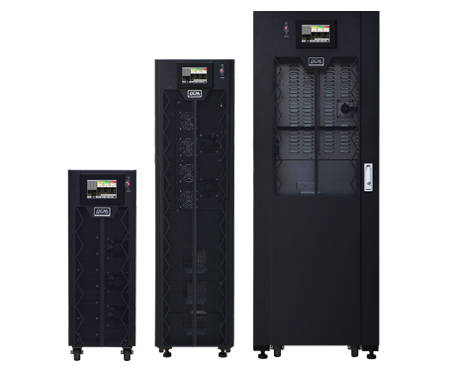

VGDII - 33


  • Three Phase UPS with Transformerless Design

  • Digital Signal Processor (DSP) Control

  • Critical Component Real-time Monitoring Available

  • Conformal Coating for Better Reliability

  • Self Burn-in Test convenient for Acceptance Check

  • UPS Parallelable Supporting up to 1500KVA

  • VGDII-33 - 10K ~ 500K

    •
     UPS
    Model
    VGDII - 10K33
    VGDII - 15K33
    VGDII - 20K33
    VGDII - 30K33
    VGDII - 40K33
    Capacity(VA)
    10K VA
    15K VA
    20K VA
    30K VA
    40K VA
    Capacity(Watts)
    10K W
    15K W
    20K W
    30K W
    40K W

     INPUT
    Grid System
    3 Phase + Neutral + Ground
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Full Load : 304 ~ 478 Vac (Line-Line)
    Other : 228 ~ 304 Vac (Line-Line)
    (load decreases linearly according to min phase voltage)
    Frequency
    50 / 60 Hz
    Frequency Range
    40 - 70 Hz
    Power Factor
    > 0.99
    Current THDi
    < 4% (Full Linear Load)
    < 3% (Full Linear Load)

     OUTPUT
    Inverter Voltage
    380 / 400 / 415 Vac (Line-Line)
    Inverter Frequency
    50 / 60 Hz
    Output Power Factor
    1.0
    Voltage Precision
    ± 1.5% Typical (0-100% balanced Linear Load)
    Transient Response
    < 5% for step load (20% - 80% - 20%)
    Transient Rescovery
    < 30ms for step load (20% - 100% - 20%)
    Output THDv
    < 1% (linear load)
    < 5.5% (non-linear load) according to IEC/EN62040-3
    < 1% (linear load)
    < 6% (non-linear load) according to IEC/EN62040-3
    Inverter Overload
    100 ~ 110%
    60 min
    30 min
    110 ~ 125%
    60 ~ 10min
    30 ~ 5min
    125 ~ 150%
    10 ~ 1min
    5 min ~ 10sec
    Frequency Regulation
    Default : 50/60 Hz ± 0.1%
    Synchronized Range
    Default : ±3Hz, Settable Range : ±0.5Hz to ±5Hz
    Synchronized Slew Rate
    Default : ±0.5Hz, Settable Range : ±0.5Hz to ±3Hz

     Battery and Charger
    Battery Voltage
    ± 240VDC
    Charger Voltage Precision
    1%
    Charger Power
    MAX = 20% System Power

     Bypass Input
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Default : -20% to +15%
    Selectable Upper Limit : +10%, +15%, +20%, +25%
    Selectable Lower Limit : -10%, -20%, -30%, - 40%
    Frequency
    50 / 60 Hz
    Frequency Range
    Default : ±4Hz
    Settable Range : ± 1Hz, ± 3Hz, ± 5Hz

    Bypass Overload
    125% long time operation
    125% to 130% for 10min
    130% to 150%, 1 min

     Efficiency
    Normal Operation
    95% max
    > 95%
    > 96%
    Battery Operation
    94.5% max
    > 95%
    > 96%

     Static Transfer Switch
    Inverter to Bypass
    0 ms
    Bypass to Inverter
    0 ms
    Transfer Efficiency
    > 99%

     Environment
    Operation Temperature
    0 - 40°C
    Storage Temperature
    -40°C ~ 70°C
    Relative Humidity
    0 - 95% non-condensing
    Noise (1m from surface)
    58dB @ 100% load
    52dB @ 45% load
    65dB @ 100% load
    62dB @ 45% load
    Altitude
    Normal : < 1000m
    Power declined 1% per 100m from 1000 to 2000m

     Physical Data
    Dimension(WxDxH)(mm)
    250 x 840 x 715
    350 x 738 x 1335
    500 x 840 x 1400
    Weight (kg)
    51.5
    89
    140

     System
    Display
    LED + LCD touch screen
    Parallel Cabinet Q'ty
    8
    Interface
    Standard : RS232 / RS485 / DryContact
    Optional : SNMP
    Other Function
    Standard : Battery Cold Start
    Optional : Parallel Kit
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     UPS
    Model
    VGDII - 60K33
    VGDII - 80K33
    VGDII - 90K33
    VGDII - 100K33
    VGDII - 120K33
    Capacity(VA)
    60K VA
    80K VA
    90K VA
    100K VA
    120K VA
    Capacity(Watts)
    60K W
    80K W
    90K W
    100K W
    120K W

     INPUT
    Grid System
    3 Phase + Neutral + Ground
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Full Load : 304 ~ 478 Vac (Line-Line)
    Other : 228 ~ 304 Vac (Line-Line)
    (load decreases linearly according to min phase voltage)
    Frequency
    50 / 60 Hz
    Frequency Range
    40 - 70 Hz
    Power Factor
    > 0.99
    Current THDi
    < 3 % (Full Linear Load)

     OUTPUT
    Inverter Voltage
    380 / 400 / 415 Vac (Line-Line)
    Inverter Frequency
    50 / 60 Hz
    Output Power Factor
    1
    Voltage Precision
    ± 1%
    Transient Response
    < 5% for step load (20% -> 80% -> 20%)
    Transient Rescovery
    < 30ms for step load (0% -> 100% -> 0%)
    Output THDv
    < 1% from 0% linear load
    < 5% full non-linear load according to IEC/EN62040-3

    Inverter Overload
    <110% 60min; 110~125%, 10min
    125% to 150%, 1 min
    > 150%, 200ms
    Frequency Regulation
    Default : 50/60 Hz ± 0.01%
    Synchronized Range
    Default : ±3Hz, Settable Range : ±0.5Hz to ±5Hz
    Synchronized Slew Rate
    Default : ±0.5Hz, Settable Range : ±0.5Hz to ±3Hz

     Battery and Charger
    Battery Voltage
    ± 240VDC (12V 20+20 Pcs)
    Charger Voltage Precision
    1%
    Charger Power
    MAX = 20% *Output PowerMAX

     Bypass Input
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Selectable Default : -20% to +15%
    Upper Limit : +10%, +15%, +20%, +25%
    Lower Limit : -10%, -15%, -20%, -30%, - 40%
    Frequency
    50 / 60 Hz
    Frequency Range
    Settable Range : ± 1Hz, ± 3Hz, ± 5Hz

    Bypass Overload
    125% to 130% for 10min
    130% to 150%, 1 min
    > 150% for 300ms

     Efficiency
    Normal Operation
    > 95%
    > 96%
    > 95%
    > 96%
    > 95%
    Battery Operation
    > 95%
    > 96%
    > 95%
    > 96%
    > 95%

     Static Transfer Switch
    Inverter to Bypass
    0 ms
    Bypass to Inverter
    0 ms
    Transfer Efficiency
    > 99%

     Environment
    Operation Temperature
    0 - 40°C
    Storage Temperature
    -40°C ~ 70°C
    Relative Humidity
    0 - 95% non-condensing
    Noise
    65dB @ 100% load
    62dB @ 45% load

    Altitude
    Normal Load < 1000m
    Power derated 1% per 100m from 1000 to 2000m

     Physical Data
    Dimension (WxDxH)(mm)
    600 x 980 x 950
    600 x 980 x 1150
    600 x 980 x 1400
    600 x 980 x 1150
    600 x 980 x 1400
    Weight (kg)
    170
    210
    231
    210
    266

     System
    Display
    LED + LCD touch screen
    Parallel Cabinet Q'ty
    8
    7
    8
    7
    Interface
    Standard : RS232 / RS485 / USB / Dry Contact
    Optional : SNMP / AS400
    Protections
    Standard : Battey Cold Start
    Other Function
    Parallel Kit, Lightning protection components, Load Bus Synchronization
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     UPS
    Model
    VGDII - 150K33
    VGDII - 200K33
    VGDII - 250K33
    VGDII - 300K33
    VGDII - 400K33
    VGDII - 500K33
    Capacity(VA)
    150K VA
    200K VA
    250K VA
    300K VA
    400K VA
    500K VA
    Capacity(Watts)
    150K W
    200K W
    250K W
    300K W
    400K W
    500K W

     INPUT
    Grid System
    3 Phase + Neutral + Ground
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Full Load : 304 ~ 478 Vac (Line-Line)
    Other : 228 ~ 304 Vac (Line-Line)
    (load decreases linearly according to min phase voltage)
    Frequency
    50 / 60 Hz
    Frequency Range
    40 - 70 Hz
    Power Factor
    > 0.99
    Current THDi
    < 3 % (Full Linear Load)

     OUTPUT
    Inverter Voltage
    380 / 400 / 415 Vac (Line-Line)
    Inverter Frequency
    50 / 60 Hz
    Output Power Factor
    1
    Voltage Precision
    ±1%
    Transient Response
    < 5% for step load (20% - 80% - 20%)
    Transient Rescovery
    < 30ms for step load (0% - 100% - 0%)
    Output THDv
    < 1% from 0 to 100% linear load
    < 5% full non-linear load according to IEC/EN62040-3

    Inverter Overload
    <100% 60min
    110 ~ 125% 10 min
    125 ~ 150% 1 min
    >150 200ms
    Frequency Regulation
    50/60 Hz ± 0.01%
    Synchronized Range
    Default : ±3Hz
    Settable Range : ±0.5Hz to ±5Hz
    Synchronized Slew Rate
    Default Range : 0.5Hz
    Settable Range : 0.5Hz to ±3Hz

     Battery and Charger
    Battery Voltage
    ± 240VDC
    Charger Voltage Precision
    1%
    Charger Power
    MAX = 20% * Output PowerMAX

     Bypass Input
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Selectable Default : -20% to +15%
    Upper Limit : +10%, +15%, +20%, +25%
    Lower Limit : -10%, -15%, -20%, -30%, -40%
    Frequency
    50 / 60 Hz
    Frequency Range
    Settable Range : ± 1Hz, ± 3Hz, ± 5Hz

    Bypass Overload
    125% long time operation
    125% to 130%, 10 min
    130% to 150%, 1 min
    Over 150% for 300ms
    110% long time operation
    110% to 125%, 5 min
    125% to 150%, 1 min
    Over 150% for 1s

     Efficiency
    Normal Operation
    > 96%
    Battery Operation
    > 96%

     Static Transfer Switch
    Inverter to Bypass
    0 ms
    Bypass to Inverter
    0 ms
    Transfer Efficiency
    > 99%

     Environment
    Operation Temperature
    0 - 40°C
    Storage Temperature
    -40°C ~ 70°C
    Relative Humidity
    0 - 95% non-condensing
    Noise
    65dB @ 100% load
    62dB @ 45% load
    Altitude
    Normal Load : < 1000m
    Power derated 1% per 100m from 1000 to 2000m

     Physical Data
    Dimension (WxDxH)(mm)
    650 x 960 x 1600
    650 x 960 x 2000
    1300 x 1100 x 2000
    Weight (kg)
    305
    350
    445
    490
    810
    900

     System
    Display
    LED + LCD touch screen
    Parallel Cabinet Q'ty
    7
    5
    3
    Interface
    Standard : RS232 / RS485 / USB / Dry Contact
    Optional : SNMP / AS400
    Protections
    Optional : Lightning protection components / dust filter
    Other Function
    Standard : Battery Cold Start
    Optional : Parallel Kit, Lightning protection components, Load Bus Synchronization
    * 20-40KVA model performed PF 0.9 in 30-40°C environmental temperature

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product
