SPT - Smart King Pro Tower


  • Line-Interactive UPS Design

  • Pure Sinewave Output for Better Power Performance

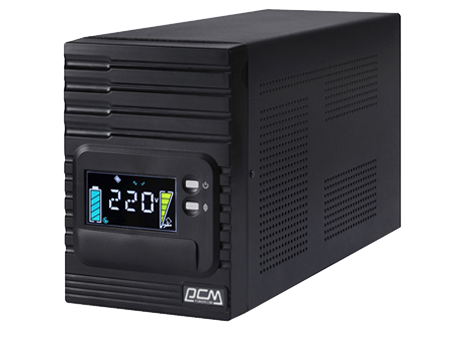

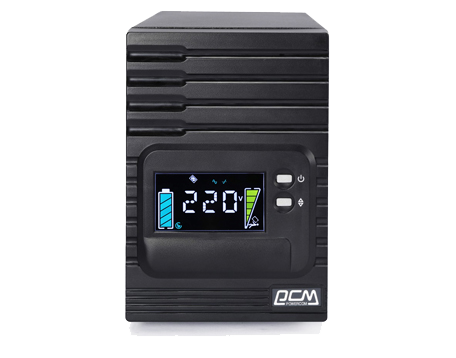

  • Colorful diagram LCD for better UPS status indication

  • Build-in AVR Aimed for Fluctuating Voltage Problem

  • Battery Easy-Swap Replacement Design

  • Surge, Short Circuit, Overload Protections

  • SPT - 500 / 700 / 1000 / 1500 / 2000 / 3000VA

    •       　  　  　
     UPS
    Model
    SPT-500A
    SPT-700A
    SPT-1000A LCD
    SPT-1500A LCD
    SPT-2000A LCD
    SPT-3000A LCD
    Capacity(VA)
    500 VA
    700 VA
    1000 VA
    1500 VA
    2000 VA
    3000 VA
    Capacity(Watts)
    400 W
    560 W
    800 W
    1200 W
    1600 W
    2400 W
    Form
    Tower Type

     INPUT
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    220 / 230 / 240 Vac
    Voltage Range
    75 - 150 or 165 - 300 Vac
    165 - 300 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Pure Sine Wave
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 1 Hz
    50 / 60 Hz ± 0.5 Hz
    Transfer Time
    2 - 4 ms(Typical)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ11 / RJ45

     BATTERY
    Model
    SPT-500A
    SPT-700A
    SPT-1000A
    SPT-1500A
    SPT-2000A
    SPT-3000A
    Type - Tower
    12V 7.2Ah x1
    12V 9Ah x1
    12V 7Ah x2
    12V 7.2Ah x2
    12V 9Ah x2
    12V 7Ah x4
    Quantity
    1
    2
    4
    Sealed, Maintenance Free
    YES
    Typical Recharge Time
    3 - 4 Hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Panel
    LCD Panel
    Communication Port
    USB(B-type)
    RS232, USB(B-type) & SNMP SLOT

     PHYSICAL
    Dimensions(WxDxH)(mm)
    102 x 326 x 165
    140 x 380 x 210
    170 x 450 x 226
    Weights(Kgs)
    6.2
    6.8
    14
    15
    17.5
    25.4
    Shipping Dimensions(mm)
    196 x 410 x 263
    258 x 487 x 326
    298 x 356 x 553
    Shipping Weights(Kgs)
    7.2
    7.8
    15.4
    16.4
    18.9
    28.2
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
    　Catalog LCD  　
    　User Manual - 1  　
    　User Manual - 2  　
    　Certification  　
     Monitoring
    　Upsmon Pro Windows  　
    　Upsmon Pro Linux  　
    　SNMPCard - DA807  　
    　Modbus - NET485  　


    POWERCOM SPT Line Interactive UPS series with smart design and provide pure sinewave output for connected application is the best choice for Office, SOHO and Home application. SPT series UPS with high quality pure sinewave output for connected critical device. SPT series build in AVR (Automatic Voltage Regulator) stabilize fluctuated voltage including over-voltage, under-voltage and other voltage problem, and output with stable output voltage to the essential equipment. SPT series attached with colorful LCD diagram indicator, show on UPS status and upgrades user experience. SPT series offers power protection including overload, surge and short circuit protection. SPT series with USB port (Option) are able to monitor UPS status, schedule UPS event control and instant message notification through computer system or portable device. SPT series provide pure sinewave plus smart design carries on the duty for office, SOHO and home device application
