Macan R&T


  • Power Factor 1.0 for Larger Power Density

  • Pure Sinewave Output with Double Conversion Topology

  • Extremely Low THD suitable for Delicate Instruments

  • Diagram LCD with Auto-Rotation for better User experience

  • Hot Swappable Battery Replacement for Maintenance

  • Overload, Surge, Short Circuit Protection

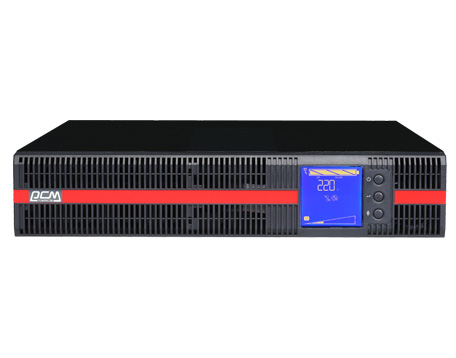

  • MRT - 1000 / 2000 / 3000 / 6000 / 10000VA

    •
     UPS
    Model
    MRT-1000
    MRT-1500
    MRT-2000
    MRT-3000
    MRT-6000
    MRT-10000
    Capacity(VA)
    1000 VA
    1500 VA
    2000 VA
    3000 VA
    6000 VA
    10K VA
    Capacity(Watts)
    1000 W
    1500 W
    2000 W
    3000 W
    6000 W
    10K W
    Form

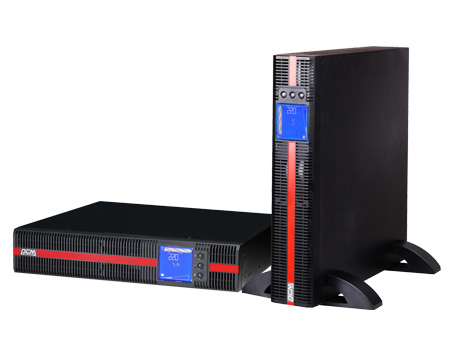

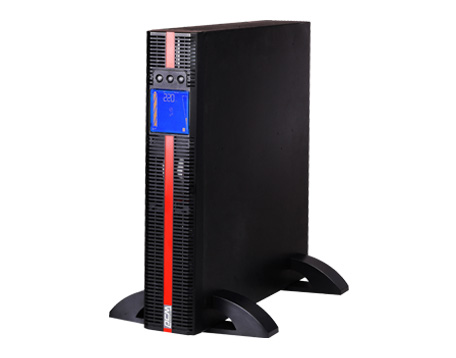

    Rack & Tower

     INPUT
    Voltage
    208 / 220 / 230 / 240 Vac
    Voltage Range
    120 - 140 Vac, < 25% Load
    140 - 160 Vac, < 50% Load
    160 - 180 Vac, < 75% Load
    180 - 276 Vac, < 100% Load
    Frequency Range
    50 / 60 Hz (Auto Sensing)
    Power Factor
    > 0.97
    Cold Start
    Yes

     OUTPUT
    Rated Power Factor
    1.0
    Waveform
    Pure Sine Wave
    Voltage
    208 / 220 / 230 / 240 Vac ± 2%
    Frequency
    50 / 60 Hz ± 0.25 Hz
    Transfer Time
    0 ms
    Harmonic Distortion
    ≦ 2.5% THD at Linear Load
    ≦ 3% THD at Linear Load
    Crest Factor
    3 : 1
    EPO Function
    Option

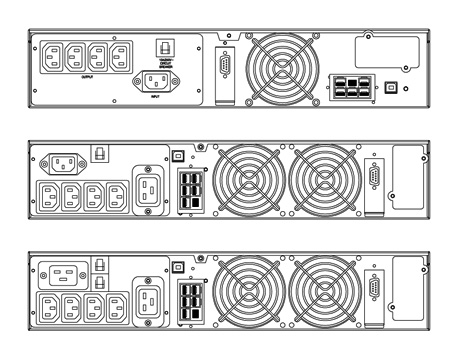

    Output Receptacle Option

     PROTECTION
    Overload Line Mode
    105% - 120% for 30 seconds
    121% - 150% for 10 seconds
    Battery Mode
    101% - 109% for 10 seconds
    110% - 120% for 3 seconds
    Surge Protection
    IEC 61000-4-5 Level 3
    Bypass
    Internal Bypass(Automatic and Manual)
    Short Circuit Protection
    UPS Output Cut Off Immediately

     BATTERY
    Model
    MRT-1000
    MRT-1500
    MRT-2000
    MRT-3000
    MRT-6000
    MRT-10K
    Type
    12V 7Ah
    12V 9Ah
    12V 7Ah
    12V 9Ah
    12V 5Ah
    12V 9Ah
    Quantity
    3
    3
    6
    6
    20
    20
    Sealed, Maintenance Free
    YES
    Typical Recharge Time
    4 Hr to 90%
    External Battery Module
    Option
    Yes
    External Battery Connector
    Option
    Yes

     ENVIRONMENT
    Operating Humidity
    0~90% RH at 0~40°C(Non-condensing)
    Audible Noise
    Less than 40 dB
    Less than 55 dB
    Altitude
    < 2000m
    Heat Dissipation (BTU/h)
    342
    512
    683
    1024
    2047
    3412

     MANAGEMENT & COMMUNICATION
    LCD Control Panel
    YES
    Communication Port
    RS232, USB(B-type)
    SNMP Slot
    Option
    Audible Alarms
    YES

     PHYSICAL
    Power Module Dimensions(WxDxH)(mm)
    428 x 425 x 84
    428 x 635 x 84
    Weights(Kgs)
    14.7
    16.2
    26.2
    29
    15.7
    20
    Shipping Dimensions
    546 x 552 x 206
    550 x 750 x 220
    Shipping Weights
    17.5
    19
    30
    33.4
    18
    24
    Battery Module Dimensions(WxDxH)(mm)
    428 x 425 x 84
    428 x 635 x 84
    428 x 635 x 84 (2U)
    428 x 635 x 130 (3U)
    Weights(Kgs)
    20.7
    37.3
    42
    68
    Shipping Dimensions
    546 x 552 x 206
    550 x 750 x 220
    500 x 750 x 220
    830 x 590 x 370
    Shipping Weights
    23.4
    40.8
    45.6
    83
    * While 208V output, capacity will derated to 90%

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
    　Catalog  　
    　User Manual - 1  　
    　User Manual - 2  　
    　Certification  　
     Monitoring
    　Upsmon Pro Windows  　
    　Upsmon Pro Linux  　
    　SNMPCard - DA807  　
    　Modbus - NET485  　
    　DryContact - AS400  　
    　Tool - Latest Fimrware  　
    　Firmware - Latest Firmware  　



    POWERCOM MRT online series with high quality performance and technic outfit design are the best choice of safe-guard for server, data center, storage equipment and network equipment. POWERCOM MRT online series with high performance power factor 1.0 brings up the reliable protection and great UPS performance for users. MRT series upgrade user experience and working quality by adding Diagram auto-self rotated LCD Display for informing indications directly；Multi-sections fan regulation design for reducing the operating noise. MRT series with connectable UPS management system are able to schedule UPS program, monitor UPS on-time status by portable device. POWERCOM MRT series combine with high-tech design, clear LCD indicator and portable device UPS monitor is the best guarding for server, data center, storage equipment and network equipment.
