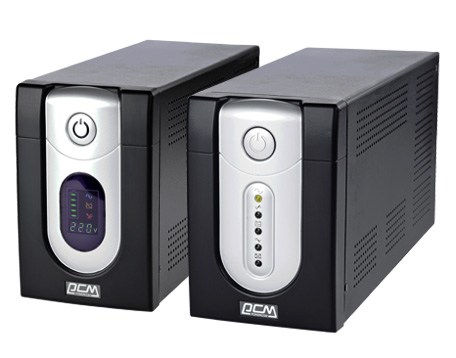

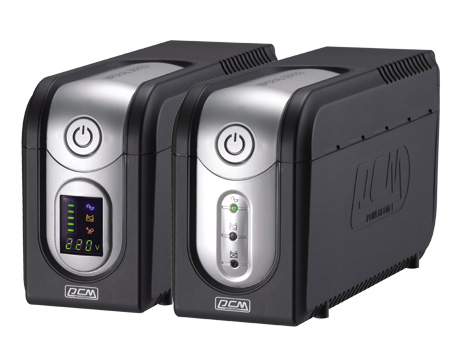

IMP - Raptor


  • Line-Interactive UPS Design

  • Build-in AVR aimed for Fluctuating Voltage Problem

  • Diagram LCD for better status indication (IMD model)

  • Energy Saving Green Topology

  • Advanced Digital Microprocessor Control

  • Surge, Short Circuit, Overload Protections

  • IMP-425 ~ 3000 VA

    •       　  　
     UPS

    Model
    IMP-425A
    IMP-525A
    IMP-625A
    IMP-825A
    IMP-1000A
    IMP-425AP
    IMP-525AP
    IMP-625AP
    IMP-825AP
    IMP-1000AP
    Capacity(VA)
    425 VA
    525 VA
    625 VA
    825 VA
    1000 VA
    Capacity(Watts)
    255 W
    315 W
    375 W
    495 W
    550 W
    Form
    Tower Type

     INPUT
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Voltage Range
    75 - 150 or 165 - 300 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Simulated Sine Wave
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 0.5 Hz
    Transfer Time
    2 -4 ms(Typical)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ11 / RJ45 : AP Model

     BATTERY
    Model
    IMP-425AP
    IMP-525AP
    IMP-625AP
    IMP-825AP
    IMP-1000AP
    Type
    12V 7.2Ah
    12V 9Ah
    Quantity
    1
    Typical Recharge Time
    6 - 8 Hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Control Panel, IMP
    Digital Control Panel, IMD
    Communication Port
    USB(B-type)

     PHYSICAL
    Dimensions(WxDxH)(mm)
    105 x 334 x 168
    Weights(Kgs)
    6.1
    6.3
    6.8
    Shipping Dimensions(mm)
    196 x 410 x 263
    Shipping Weights(Kgs)
    7.4
    7.6
    8.1

     Alarm
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 2 seconds
    Low Battery
    Beep every 0.5 seconds

     Environment
    Operating Humidity
    0 - 90 % RH at 0 - 40 °C (Non-condensing)
    Audible Noise
    Less than 40 dB
    * IMD series are same specification with IMP series, but in Digital Indicator

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
    　Catalog - 1  　
    　Catalog - 2  　
    　User Manual - 1  　
    　User Manual - 2  　
    　Certification - 1  　
    　Certification - 2  　
     Monitoring
    　Upsmon Pro Windows  　
    　Upsmon Pro Linux  　


    POWERCOM IMP/IMD Line Interactive UPS with curve outfit and power protection function are the best choice for Telecom, Business and home application, POWERCOM IMP/IMD line-interactive UPS series with Auto Voltage Regulator (AVR) stabilize fluctuate voltage including over-voltage, under-voltage and other unfluctuating voltage problem and output with clean and stable voltage for essential device. IMP/IMD line-interactive UPS apply with advanced microprocessor control, energy saving green topology and audible alarm system, brings up energy-saving and efficient operating function for essential device. Moreover, IMP/IMD line-interactive UPS series offers protection including overload, surge and short circuit protection. POWERCOM IMP/IMD Line Interactive UPS with elegant design and power protection feature are the best choice for telecom, business and home application.
     Feedback
    　EMail Link 　
    　Phone Tel : 61-456-607-091 　


     UPS
    Model
    IMP-1025AP
    IMP-1200AP
    IMP-1500AP
    IMP-2000AP
    IMP-3000AP
    Capacity(VA)
    1025 VA
    1200 VA
    1500 VA
    2000 VA
    3000 VA
    Capacity(Watts)
    615 W
    720 W
    900 W
    1200 W
    1800 W
    Form
    Tower Type

     INPUT
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Voltage Range
    75 - 150 or 165 - 300 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Simulated Sine Wave
    Voltage
    100 / 110 / 120 or 220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 0.5 Hz
    Transfer Time
    2 -4 ms(Typical)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ11 / RJ45 : AP Model

     BATTERY
    Model
    IMP-1025AP
    IMP-1200AP
    IMP-1500AP
    IMP-2000AP
    IMP-3000AP
    Type
    12V 7.2Ah
    12V 9Ah
    Quantity
    2
    3
    Typical Recharge Time
    6 - 8 Hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Control Panel, IMP
    Digital Control Panel, IMD
    Communication Port
    USB(B-type) : AP Model

     PHYSICAL
    Dimensions(WxDxH)(mm)
    130 x 382 x 200
    130 x 440 x 200
    Weights(Kgs)
    13.5
    16
    16.6
    22
    Shipping Dimensions(mm)
    253 x 488 x 321
    253 x 556 x 321
    Shipping Weights(Kgs)
    15.5
    18
    18.6
    24

     Alarm
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 2 seconds
    Low Battery
    Beep every 0.5 seconds

     Environment
    Operating Humidity
    0 - 90 % RH at 0 - 40 °C (Non-condensing)
    Audible Noise
    Less than 40 dB
    * IMD series are same specification with IMP series, but in Digital Indicator

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product
