AVR - AR


  • Automatic Voltage Regulator(AVR)

  • Extended Input Voltage Range

  • EMI Noise Filtration Applied

  • Energy Saving Green Topology

  • Clean and LCD indicator

  • Output Power Full Protection

    •
     AVR
    Model
    AR-5000
    AR-7500
    AR-10K

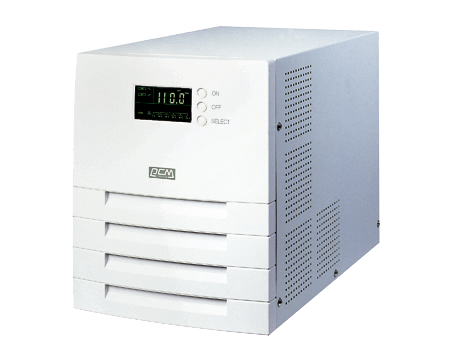

    AR-15K

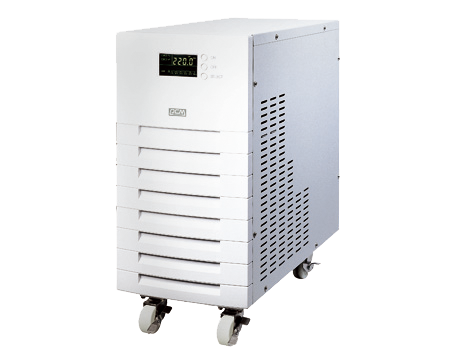

    AR-20K
    Power Rating
    3.5KW
    5.25KW
    7KW
    10.5KW
    14KW

     INPUT
    Frequency
    50 or 60Hz
    Range
    110 Vac ±15%
    220 Vac ±15%

     OUTPUT
    Voltage Regulation
    ±1%
    Frequency
    50 / 60 Hz follow input
    Efficiency
    > 95%
    Power Factor
    ±0.7
    Distortion
    < 3% of T.H.D. at linear load

     AVR
    Operation
    SPWM (sinwave plus width modulation)
    Component
    IGBT
    Operation Frequency
    20 kHz

     PROTECTION
    Full Protection
    Output over/under voltage, Overload, Surge
    Maintenance
    Manual bypass switch (option)

     MANAGEMENT & COMMUNICATION
    Indicator
    LCD Panel

     PHYSICAL
    Dimensions(WxDxH)(mm)
    258 x 422 x 333
    258 x 532 x 546
    Weights(Kgs)
    15
    24
    28
    32
    40

     ENVIRONMENT
    Operating Humidity
    0~95% RH at 0~40°C (Non-condensing)
    Audible Noise
    Less than 45 dB
    Less than 50 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
    　Catalog  　
     Monitoring
    　Upsmon Pro Windows   Link　　　　
    　Upsmon Pro Linux   Link　　　　
    　Upsmon Manager   Link　　　　
    　NetAgent Snmpcard   Link　　　　
    　NetPower Snmpcard   Link　　　　
     Feedback
    　EMail Link 　
    　Phone Tel : 61-456-607-091 　



    POWERCOM AR-11 series are Auto Voltage Regulator (AVR) provide high generate efficiency for home, office and data center. POWERCOM AR-11 series stabilize fluctuate voltage including over-voltage, under-voltage and other unfluctuating voltage problem and output with clean and stable voltage for essential device. POWERCOM AR-11 series with clear LCD indicator to read model status are compatible with linear and non-linear load. POWERCOM AR-11 series build-in surge suppressor (MOV), EMI & LC filters provide pure output for connected model. POWERCOM AR-11 series are Auto Voltage Regulator (AVR) with high performance is the best choice for home, office and data center.
