   VRM - Vanguard Rack

  • On-Line UPS with Rack-Tower Type Design

  • Pure Sinewave with Double Conversion

  • Hot Swappable Battery Replacement

  • Extendable Battery Pack Support

  • High Efficiency and Free-Run Mode Available

  • Overload, Surge, Short Circuit Protection

  • VRM-700 ~ 12KVA

    •  UPS
    Model
    VRM-700
    VRM-1000
    VRM-1500
    VRM-2000
    VRM-3000
    Capacity(VA)
    700 VA
    1000 VA
    1500 VA
    2000 VA
    3000 VA
    Capacity(Watts)
    490 W
    700 W
    1050 W
    1400 W
    2100 W
    Form
    Rack Type
    Phase
    Single Phase
    Energy Saving
    Yes - ECO Mode Efficiency > 94%

     INPUT
    Voltage
    100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac
    Voltage Range (110 Vac)
    60 - 144 Vac, < 40% Load
    70 - 144 Vac, < 70% Load
    80 - 144 Vac, < 100% Load
    Voltage Range (220 Vac)
    120 - 276 Vac, < 40% Load
    140 - 276 Vac, < 70% Load
    160 - 276 Vac, < 100% Load
    Frequency Range
    50 / 60 Hz (Auto Sensing)
    Power Factor
    > 0.97
    Cold Start
    Yes

     OUTPUT
    Rated Power Factor
    0.7
    Waveform
    Pure Sine Wave
    Voltage
    100 / 110 / 115 / 120 / 127 Vac or 208 / 220 / 230 / 240 Vac ± 2%
    Frequency
    50 / 60 Hz ± 0.25 Hz
    Transfer Time
    0 ms
    Harmonic Distortion
    ≤ 3% THD at Linear Load
    Crest Factor
    3 : 1
    EPO Function
    Yes

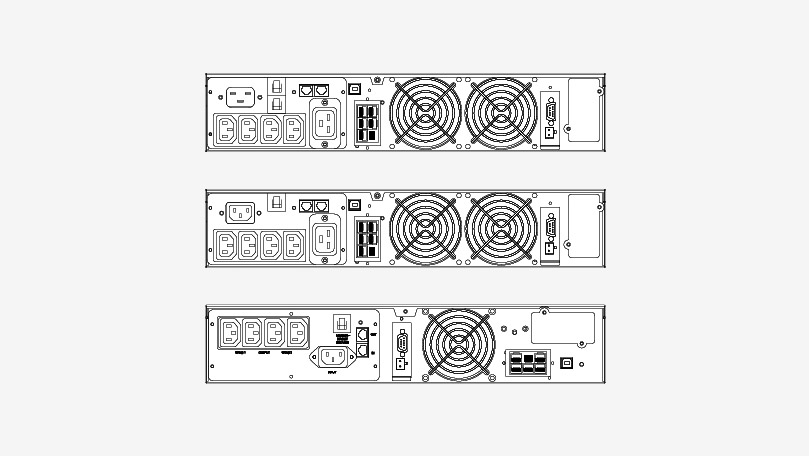

    Output Receptacle Option

     PROTECTION
    Overload Line Mode
    110% - 125% for 60 seconds
    125% - 150% for 10 seconds
    Battery Mode
    > 110% for 10 seconds
    Surge Protection
    IEC 61000-4-5 Level 3
    Bypass
    Internal Bypass(Automatic and Manual)
    Short Circuit Protection
    UPS Output Cut Off Immediately

     BATTERY
    Model
    VRM-700
    VRM-1000
    VRM-1500
    VRM-2000
    VRM-3000
    Type
    12V 7Ah
    12V 7Ah
    12V 9Ah
    12V 7Ah
    12V 9Ah
    Quantity
    2
    3
    3
    6
    6
    Sealed, Maintenance Free
    YES
    Typical Recharge Time
    4 Hr to 90%
    External Battery Module
    Option
    External Battery Connector
    Option

     MANAGEMENT & COMMUNICATION
    LCD Control Panel
    YES
    Communication Port
    RS232, USB(B-type), SNMP(Option)
    SNMP Slot
    Option
    Audible Alarms
    YES

     PHYSICAL - Power Module
    Dimensions(WxDxH)(mm)
    428 x 525 x 44 (1U)
    428 x 425 x 84 (2U)
    428 x 525 x 44 (1U)
    428 x 425 x 84 (2U)
    428 x 425 x 84 (2U)
    428 x 635 x 84 (2U)
    Weights(Kgs)
    15.5(1U)
    14.6(2U)
    15.5(1U)
    17.7(2U)
    19.1(2U)
    31.7(2U)
    Shipping Dimensions(mm)
    547 x 645 x 168(1U)
    546 x 552 x 206(2U)
    547 x 645 x 168(1U)
    546 x 552 x 206(2U)
    546 x 552 x 206(2U)
    550 x 750 x 220(2U)
    Shipping Weights(Kgs)
    17.5(1U)
    16.4(2U)
    17.5(1U)
    19.9(2U)
    21.3(2U)
    34.7(2U)

     PHYSICAL - Battery Module
    Dimensions
    428 x 425 x 84 (2U)
    428 x 635 x 84 (2U)
    Weight
    16.3
    43.5
    * While 208V output, capacity will derated to 90%

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     UPS
    Model
    VRM-4000
    VRM-5000
    VRM-6000
    VRM-8000
    VRM-10K
    VRM-12K
    Capacity(VA)
    4000 VA
    5000 VA
    6000 VA
    8000 VA
    10K VA
    12K VA
    Capacity(Watts)
    2800 W
    3500 W
    4200 W
    5600 W
    7000 W
    8400 W
    Form
    Rack Type
    Phase
    Single Phase
    Energy Saving
    Yes - ECO Mode Efficiency > 94%

     INPUT
    Voltage
    208 / 220 / 230 / 240 Vac
    Voltage Range
    120 - 276 Vac, < 25% Load
    140 - 276 Vac, < 50% Load
    160 - 276 Vac, < 75% Load
    180 - 276 Vac, < 100% Load
    Frequency Range
    50 / 60 Hz (Auto Sensing)
    Power Factor
    > 0.97
    Cold Start
    Yes

     OUTPUT
    Rated Power Factor
    0.7
    Waveform
    Pure Sine Wave
    Voltage
    208 / 220 / 230 / 240 Vac ± 2%
    Frequency
    50 / 60 Hz ± 0.25 Hz
    Transfer Time
    0 ms
    Harmonic Distortion
    ≦ 3% THD at Linear Load
    Crest Factor
    3 : 1
    EPO Function
    Yes
    Output Receptacle Option

     PROTECTION
    Overload Line Mode
    110% - 125% for 60 seconds
    125% - 150% for 10 seconds
    Battery Mode
    > 110% for 10 seconds
    Surge Protection
    IEC 61000-4-5 Level 3
    Bypass
    Internal Bypass(Automatic and Manual)
    Short Circuit Protection
    UPS Output Cut Off Immediately

     BATTERY
    Model
    VRM-4000
    VRM-5000
    VRM-6000
    VRM-8000
    VRM-10K
    VRM-12K
    Type
    12V 5Ah
    12V 5Ah
    12V 7Ah
    12V 7Ah
    12V 9Ah
    12V 9Ah
    Quantity
    10
    20
    Sealed, Maintenance Free
    YES
    Typical Recharge Time
    4 Hr to 90%
    External Battery Module
    Option
    External Battery Connector
    Option

     MANAGEMENT & COMMUNICATION
    LCD Control Panel
    YES
    Communication Port
    RS232, USB(B-type), SNMP(Option)
    SNMP Slot
    Option
    Audible Alarms
    YES

     PHYSICAL - Power Module
    Dimensions(WxDxH)(mm)
    428 x 657 x 130 (3U)
    428 x 597 x 130 (3U)
    428 x 657 x 130 (3U)
    Weights(Kgs)
    40
    20
    24.3
    Shipping Dimensions(mm)
    590 x 830 x 370 (3U)
    560 x 740 x 273 (3U)
    565 x 805 x 280
    Shipping Weights(Kgs)
    54
    24
    30.5

     PHYSICAL - Battery Module
    Dimensions(WxDxH)(mm)
    --
    428 x 597 x 130 (3U)
    428 x 657 x 130 (3U)
    Weights(Kgs)
    --
    66
    68
    * While 208V output, capacity will derated to 90%

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog-1
     Catalog-2
     User Manual-1
     User Manual-2
     Certification
     Certification
     Monitoring
     UPSMON-Pro Windows
     UPSMON-Pro Linux
     SNMPCard - CY504
     Modbus - NET485
     DryContact - AS400
     Tool - UPS FW Upgrade V2.1



    POWERCOM VRM Online UPS series provide pure sine wave output for electronic devices. VRM online UPS are design as the safe guard of high-class computer, data center and server. VRM series contain power factor 1.0, output pure sinewave and double conversion topology, brings up great quality output and UPS performance. VRM series added Diagram LCD Display and Six sections Fan Regulation for information indication directly and operating environment quietly, upgrades user experience and working quality. POWERCOM VRM series combine with high tech design and better model performance is the best choice for high-class computer, data center and server.
