SPD-E/N - Spider


  • OFF-Line UPS Design

  • Energy Saving Green Topology

  • Tri-direction Hanger Flexibility

  • Cold Start Function

  • Surge, short circuit, overload protections

  • SPD-450 / 650 / 850 / 1000VA

  •
     UPS

    Model
    SPD-450E
    SPD-650E
    SPD-850E
    SPD-1000E
    SPD-450N
    SPD-650N
    SPD-850N
    SPD-1000N
    Capacity(VA)
    450 VA
    650 VA
    850 VA
    1000 VA
    Capacity(Watts)
    270 W
    390 W
    510 W
    550 W
    Form
    Office Type

     INPUT
    Voltage
    220 / 230 / 240 Vac
    Voltage Range
    165 - 276 Vac
    Frequency Range
    50 / 60 Hz (Auto Sensing)

     OUTPUT
    Waveform
    Simulated Sine Wave
    Voltage
    220 / 230 / 240 Vac
    Frequency
    50 / 60 Hz ± 0.5 Hz
    Transfer Time
    2 -4 ms(Typical)

     PROTECTION
    Full Protection
    Overload, Surge, Short Circuit
    Tele Communication
    RJ11 / RJ45 : E Model

     BATTERY
    Type
    12V 7Ah
    12V 7.2Ah
    12V 9Ah
    Quantity
    1
    Sealed, Maintenance Free
    YES
    Typical Recharge Time
    8 Hr to 90%

     MANAGEMENT & COMMUNICATION
    Indicator
    LED Panel, LCD Panel(Option)
    Communication Port
    USB : E model

     PHYSICAL
    Dimensions(WxDxH)(mm)
    232 x 285 x 103
    Weights(Kgs)
    3.8
    4.2
    4.3
    Shipping Dimensions(mm)
    302 x 354 x 176
    Shipping Weights(Kgs)
    4.4
    4.9
    5

     ALARM
    Overload / Fault
    Continuous Beeping
    Battery Mode
    Beep every 4 seconds
    Low Battery
    Beep every 0.5 second

     Environment
    Operating Humidity
    0~90% RH at 0~40°C (Non-condensing)
    Audible Noise
    Less than 40 dB
    * N series without tel communication, USB port

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog
     Certification
     Monitoring
     Upsmon Pro Windows
     Upsmon Pro Linux

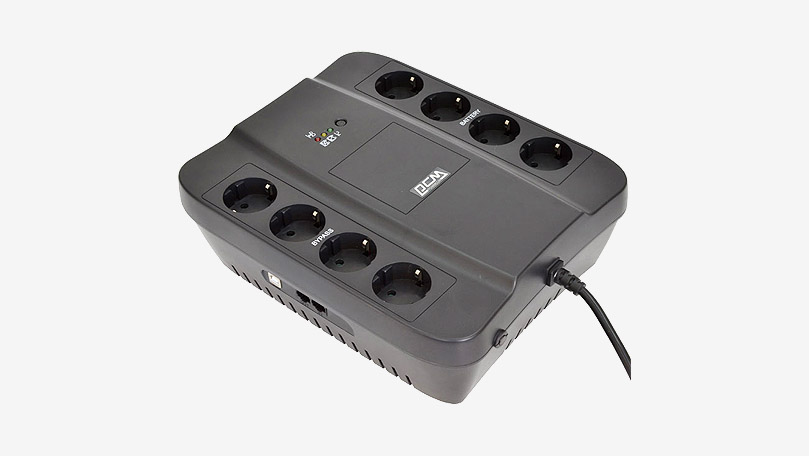

    POWERCOM SPD-E offline UPS with strong outfit and adaptable characteristic is the model for HOME, Business and mini-workstation user. SPD-E Series with 8 sockets brings up clean power for multi-device, LED/LCD Status design for UPS easy-operating. Another functional feature of SPD-E series is attached with Tri-direction wall hanger, brings up flexibility setting for user stabilized UPS on the wall. POWERCOM SPD-E offline UPS with USB port are able to monitor UPS status, schedule UPS event control and instant message notification through computer system or portable device. POWERCOM SPD-E offline UPS brings power protection to essential devices, power protection including short circuit protection, surge protection overload power protection and other abnormal power protection. POWERCOM SPD-E offline UPS with three direction wall hanger, multi - socket supports the best power protection for HOME, Business and mini-workstation for user.
