ONL Module


  • Modular UPS Series with Commercial Grade Design

  • Capacity 20K / 30KVA per Module Available

  • Three Phase Input and Output with Power Factor 1.0

  • Digital Signal Processor (DSP) Control

  • Redundant Power Supply in STS for Better Reliability

  • In-built Temperature sensor port

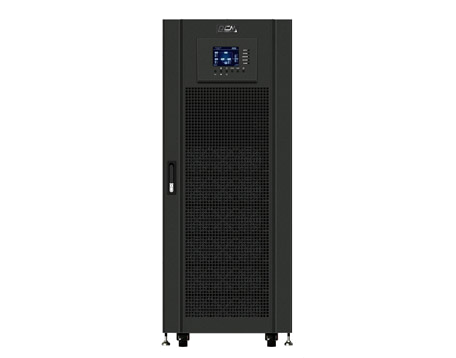

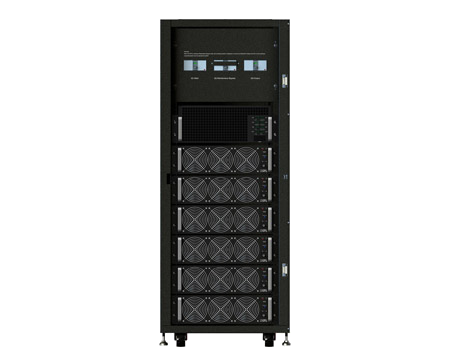

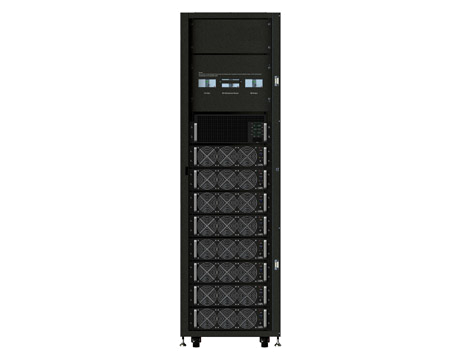

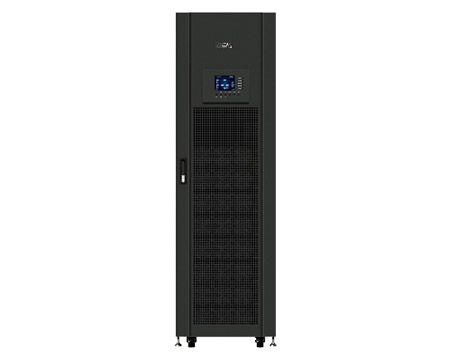

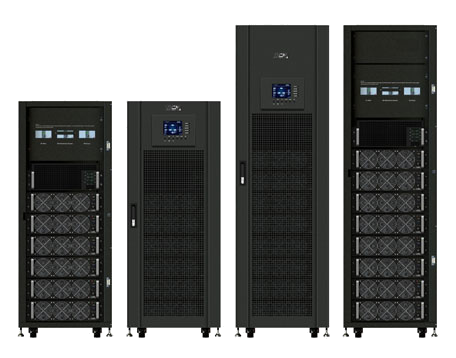

  • ONL-M - 90K / 120K / 180K / 210K / 300K

  •
     UPS
    Model
    ONLM-30U-90
    ONLM-42U-120
    ONLM-30U-120
    ONLM-30U-180
    ONLM-42U-210
    ONLM-42U-300
    Capacity(VA)
    90K VA
    120K VA
    120K VA
    180K VA
    210K VA
    300K VA
    Capacity(Watts)
    90K VA
    120K VA
    120K VA
    180K VA
    210K VA
    300K VA
    One Power Module Capacity
    20KVA / 20KW or 30KVA / 30KW
    Max. Power Module No.
    3
    4
    6
    8
    10

     INPUT
    Grid System
    3 Phase + Neutral + Ground
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    304 to 478 Vac : Full Load (Line-Line)
    208 to 478 Vac : < 70% Load (Line-Line)
    (load decreases linearly according to min phase voltage)
    Frequency
    50 / 60 Hz (Auto sensing)
    Frequency Range
    40 - 70 Hz

    Power Factor
    > 0.99 at 100% Load
    > 0.98 at 50% Load
    THDi
    < 3% at Full Linear Load

     OUTPUT
    Inverter Voltage
    380 / 400 / 415 Vac (Line-Line)
    Inverter Frequency
    50 / 60 Hz
    Output Power Factor
    Typical 1.0
    Voltage Precision
    ≦ ± 1% Typical (0-100% balanced Linear Load)
    Transient Response
    ≦ ± 5% Typical
    Transient Rescovery
    < 100ms Recover to 90% of Nominal Voltage
    Output THDv
    ≦ 2%(Linear Load), ≦ 4%(Non-Linear Load),
    Inverter Overload
    105% to 110%, 60 min/ 111% to 125%, 10 min / 126% to 150%, 1 min/ over 150%, 200ms
    Frequency Regulation
    Default : 50/60 Hz ± 0.1%
    Synchronized Range
    Default Range : ±4Hz, Settable Range : ±1Hz, ±2Hz, ±4Hz
    Synchronized Slew Rate
    1Hz / s

     Battery and Charger
    Battery Type
    Internal
    External Battery
    Max. Battery Set No.**
    3
    5
    -

    Battery Voltage
    Nominal Voltage ± 216V (12V 18+18 Pcs)
    Nominal Voltage ± 192V (12V 16+16 Pcs)
    Nominal Voltage ± 240V (12V 20+20 Pcs)
    Charger Voltage Precision
    1%
    Charger Power
    8A for each power module (User-adjustable)
    Floating Charge Voltage
    2.3V / Cell
    Boost Charging Voltage
    2.35V / Cell
    Temperature Compensation
    Yes

     Bypass Input
    Voltage
    380 / 400 / 415 Vac (Line-Line)

    Voltage Range
    Default : -20% to +15%
    Selectable Upper Limit : +10%, +15%, +20%
    Selectable Lower Limit : -10%, -20%, -30%
    Frequency
    50 / 60 Hz

    Frequency Range
    Default : ±4Hz
    Settable Range : ± 1Hz, ± 2Hz, ± 4Hz

    Bypass Overload
    105% to 11%, 60min
    111% to 125%, 10min
    126% to 150%, 1 min
    Over 150%, 200ms

     Efficiency
    Normal Operation
    Over 50% Load : > 94.5%
    Battery Operation
    Over 50% Load : > 94.5%

     Static Transfer Switch

    Inverter to Bypass
    Synchronous transfer : 0 ms
    Asynchronous transfer : < 1 cycle

    Bypass to Inverter
    Bypass to Inverter 0 ms
    ECO to Inverter Mode < 20 ms
    Transfer Efficiency
    98%

     Environment
    Operation Temperature
    0 - 40°C
    Storage Temperature
    -15°C ~ 60°C
    Relative Humidity
    0 - 95% non-condensing

    Noise (1m from surface)
    4 Power Modules : < 70dB
    8 Power Modules : < 73dB
    Altitude
    <1000m for Nominal Power
    IP Class
    IP 20

     Physical Data
    Dimension (WxDxH)(mm)
    600x1100x1475
    600x1100x2010
    600x1100x1475
    600x1100x1475
    600x1100x2010
    600x1100x2010
    Weight (kg)
    301.5
    344
    197
    230.5
    273
    275

     System

    Display
    Standard : LED & 5.7" LCD
    Optional : 10" Color Touch Screen

    Interface
    Standard : RS232 USB (Windows 2000/2003/XP/Vista/2008/7/8/10)
    Optional : SNMP

    Other Function
    Standard : Battery Cold Start
    Optional : SNMP Card, AS 400, MOD Bus, Extra Comma

     Standards
    Safety
    IEC/EN 60950-1; IEC/EN 62040-1
    EMC
    IEC/EN 62040-2 Category C3
    * Three phase modular ups , power module base ouput PF=1 (0~30°C), PF=0.9(31~35°C), PF=0.8(36~40°C)

    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog



    POWERCOM ONL-M Online UPS series provide pure sine wave output for electronic devices. ONL-M online UPS are design as the safe guard of high-class computer, data center and server. ONL-M series contain power factor 1.0, output pure sinewave and double conversion topology, brings up great quality output and UPS performance. ONL-M series added Diagram LCD Display and Six sections Fan Regulation for information indication directly and operating environment quietly, upgrades user experience and working quality. POWERCOM ONL-M series combine with high tech design and better model performance is the best choice for high-class computer, data center and server.
