INV


  • Pure Sinewave Output

  • Advanced Battery Management (ABM

  • Clear and LCD Indicator

  • Energy Saving Green Topology

  • Overload, Surge, Short Circuit Protection

  •
     Model
    Model
    INV-700 RM
    INV-1000 RM
    Capacity(VA)
    700
    1000
    Capacity(Watt)
    490
    700

     INPUT (DC)
    Nominal Voltage
    ± 48V
    Voltage Range
    ± 40 - 56V
    Frequency Range
    50 / 60 Hz (auto sensing)

     OUTPUT
    Voltage
    100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac
    Voltage Regulation
    ±2%
    Frequency Range
    50 / 60 ± 0.5 Hz
    Harmonic Distortion
    < 3% of T.H.D. at linear load
    Power Factor
    0.7
    Waveform
    Pure sine wave

     Protection
    Full Protection
    Overload, Short Circuit, Over Temperature

     Management
    Indicator
    LCD panel

     PHYSICAL
    Dimensions(WxDxH)(mm)
    428 x 525 x 44
    Weights(Kgs)
    10
    Shipping Dimension(mm)
    547 x 465 x 168
    Shipping Weight(kgs)
    11

     COMMUNICATION
    Communication Port
    RS232, USB(B-type)

     Alarm
    Low Condition
    2 beep every 5 seconds
    Fault
    Continuous Beeping
    Low Battery
    Beep every 0.5 second

     Environment
    Operating Humidity
    0~90% RH at 0~40°C (Non-condensing)
    Audible Noise
    Less than 45 dB
    * Specifications are subject to change without further notice

    * Specifications are for reference, actual information should be based on real product

     Document
     Catalog

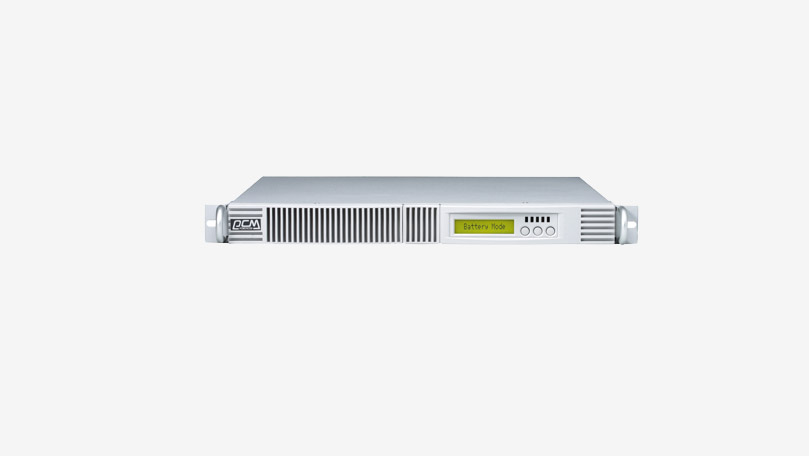

    POWERCOM INV inverter series are outfit with thin appearance and output with pure sinewave are the design for mini-workstation, IT and business device. INV series are inverter design, transfers DC into AC voltage for connected electronic device. High quality pure sinewave outputs are provided by INV series, 1U sizes are compatible with rack mounting device design. INV series with clear LCD indicator clearly shows up model status for users. POWERCOM INV inverter series output with pure sinewave, transfers DC into AC voltage and with thin appearance for connected electronic device are the best design for mini-workstation, IT and business device.
